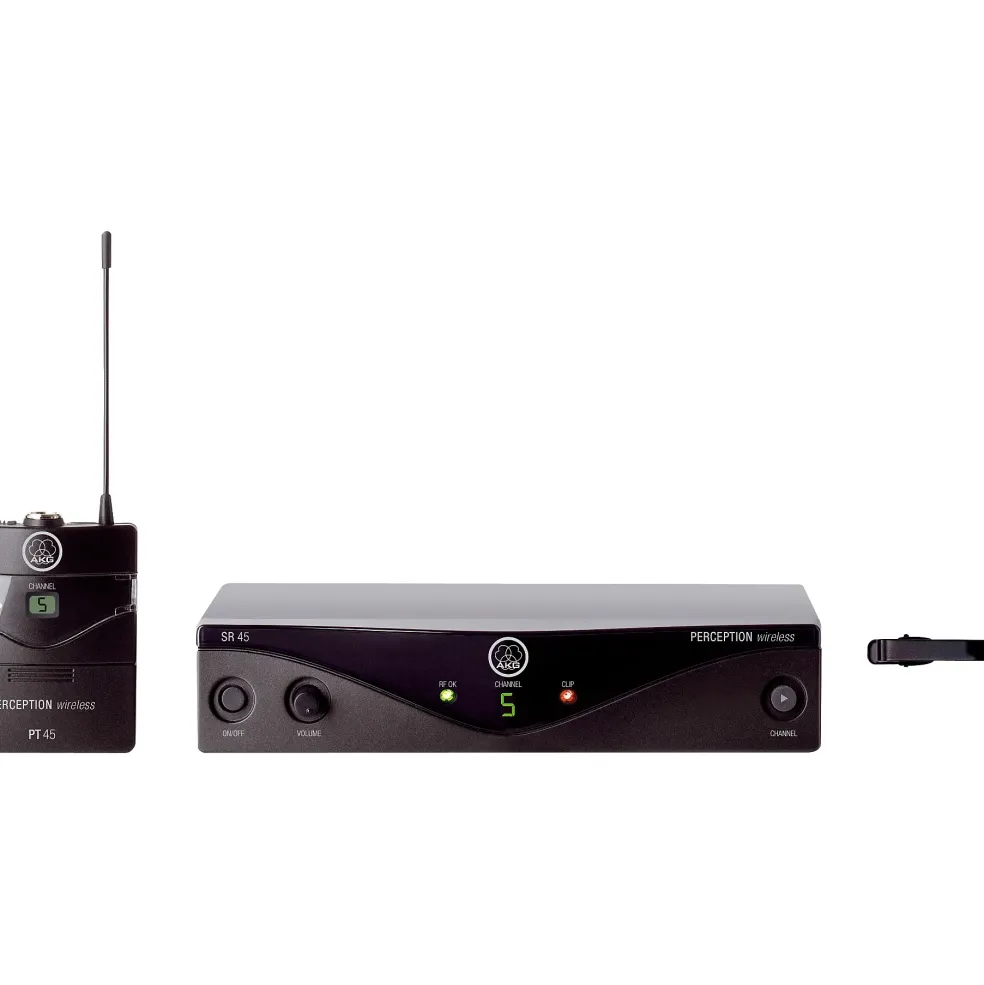

SR 45 Stationary Receiver
The SR 45 Stationary Receiver delivers a diversity system, professional XLR and Jack outputs and the SMPS solution. The audio level and squelch threshold are adjustable on the receiver. It is a stationary receiver for use with all transmitters of the Perception wireless system.
The SR 45 operates within a switching bandwidth of up to 30MHz in the 500 to 560MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.
PT 45 bodypack transmitter
The PT 45 bodypack transmitter lets you use both dynamic microphones and condenser microphones operating on a supply voltage of approx. 4V. Naturally you may also connect an electric guitar, electric bass or keytar.
The PT 45 operates within a switching bandwidth of up to 30MHz in the 500 to 560MHz UHF carrier frequency range and offers up to 8 selectable carrier frequencies.
CK 99 Lavalier Microphone
The CK 99 Lavalier Microphone is a low-profile, cost-efficient clip-on microphone for applications including houses of worship, lecturers, etc. Connects to AKG bodypack transmitters.
The CK 99 L provides a natural sound, with a slight rise above 10kHz for added clarity. Its cardioid polar pattern and bass rolloff combine to suppress unwanted ambient noise.
- 30MHz selection bandwidth (depending on local frequency plans)
- 8 hours of operation with a single AA-size battery
- Speech optimized CK 99 lavalier microphone
- Compatible with all AKG MicroMics
- Low-battery indicator
- Small and light bodypack transmitter
- Includes:
- PT 45 bodypack transmitter
- CK 55 L lavalier microphone with attachment clip
- AA battery
- SR 45 receiver
- W 444 windshield
- SMPS switched mode power supply
- Guarantee card
- Frequency table
- 1 Manual Supplement sheet
- Carrier frequency range: 500 – 560MHz
- Modulation: FM
- Audio bandwidth: 40 – 20,000Hz
- T.H.D. at 1kHz: typ. 0.8%
- Signal/noise ratio: typ. 105dB(A)
- Squelch threshold: 100 to -70dBm adjustable
- Audio outputs: Balanced XLR and unbalanced 1/4″ (6.3mm) jack: adjustable from mic to line level. Output level at rated deviation: 500mV RMS
- Dimensions: 7.87″ x 7.48″ x 1.73″, (200 x 190 x 44mm)
- Net weight: 12.69oz., (360g)
PT 45 bodypack transmitter
- Carrier frequency range: 500 – 560MHz
- Modulation: FM
- Audio bandwidth: 40 – 20,000Hz
- T.H.D. at 1kHz: typ. 0.8%
- Signal/noise ratio: typ. 105 dB(A)
- RF output: 10mW
- Power requirement: 1x 1.5V AA-size battery
- Battery life: 10 hours
- Dimensions: 2.36″ x 2.91″ x 1.18″, (60 x 74 x 30mm)
- Net weight: 2.11oz., (60g)
CK 99 Lavalier Microphone
- Polar pattern: cardioid
- Frequency range: 15 to 18,000Hz
- Sensitivity: 8.8 mV/Pa (-41dBV)
- Max. SPL:118 dB (k=1 %)
- Equivalent noise level: 34dB-A
- Signal/noise ratio (A-weighted): 60dB
- Impedance: 200 ohms
- Recommended load impedance: >2000 ohms
- Supply voltage: 1.5 to 10VDC or 9 to 52V phantom power to IEC 61938 using MPA V L
- Powering: <2 mA Connector3-pin mini XLR
- Cable: 1.6m (5′ 4″)
- Finish: matte black
- Net weight: 2.5g (.08oz.)
