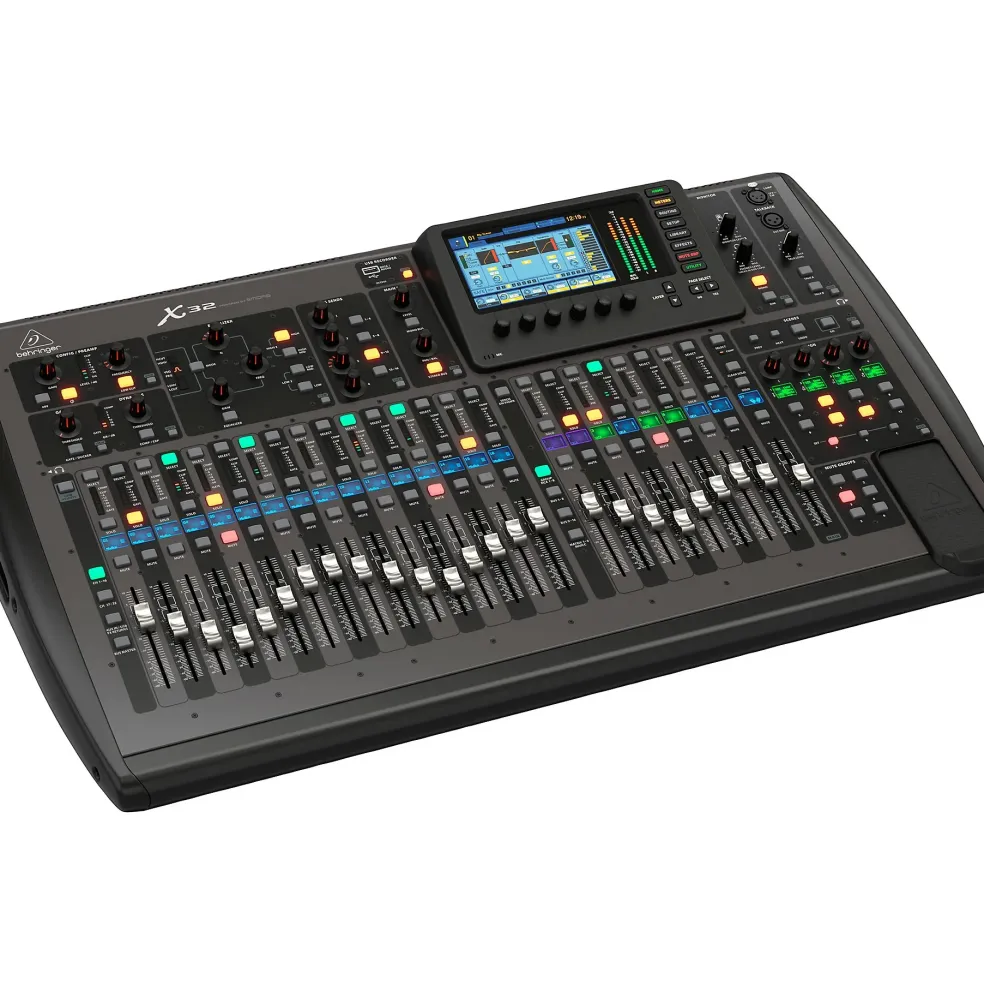

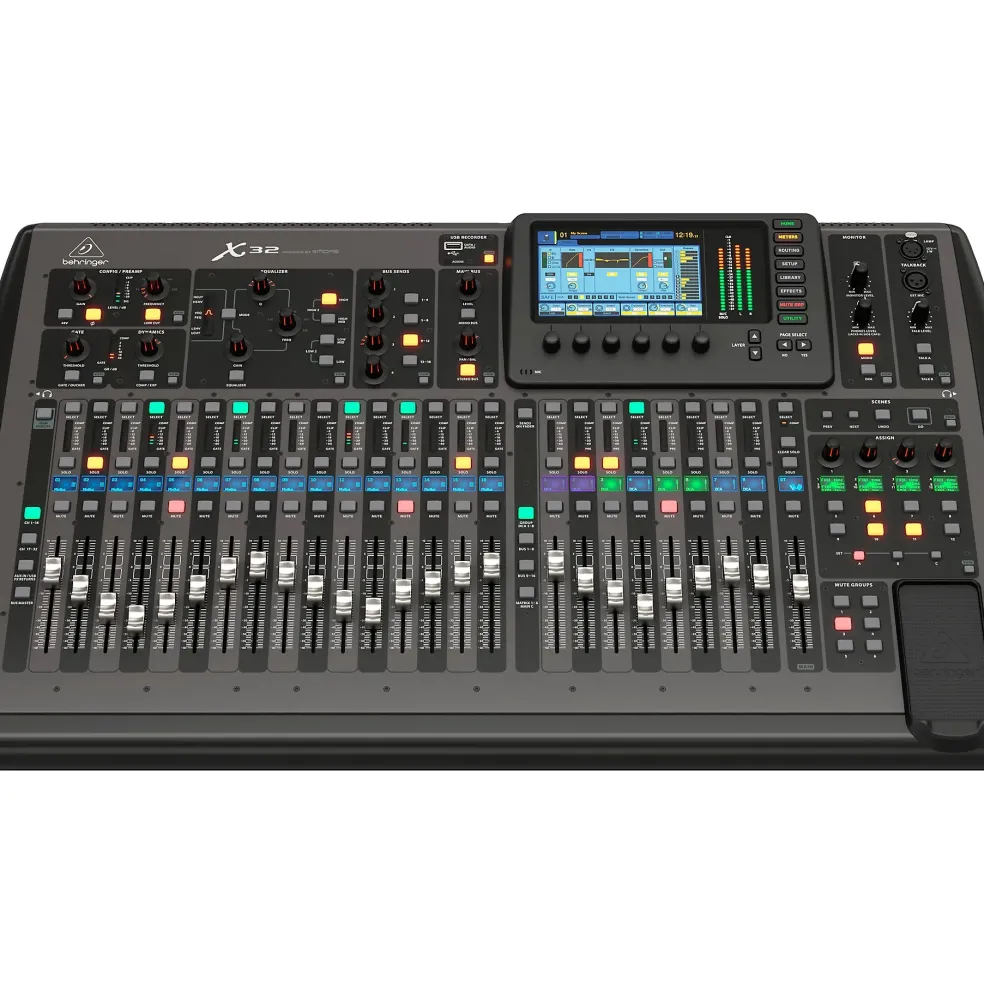

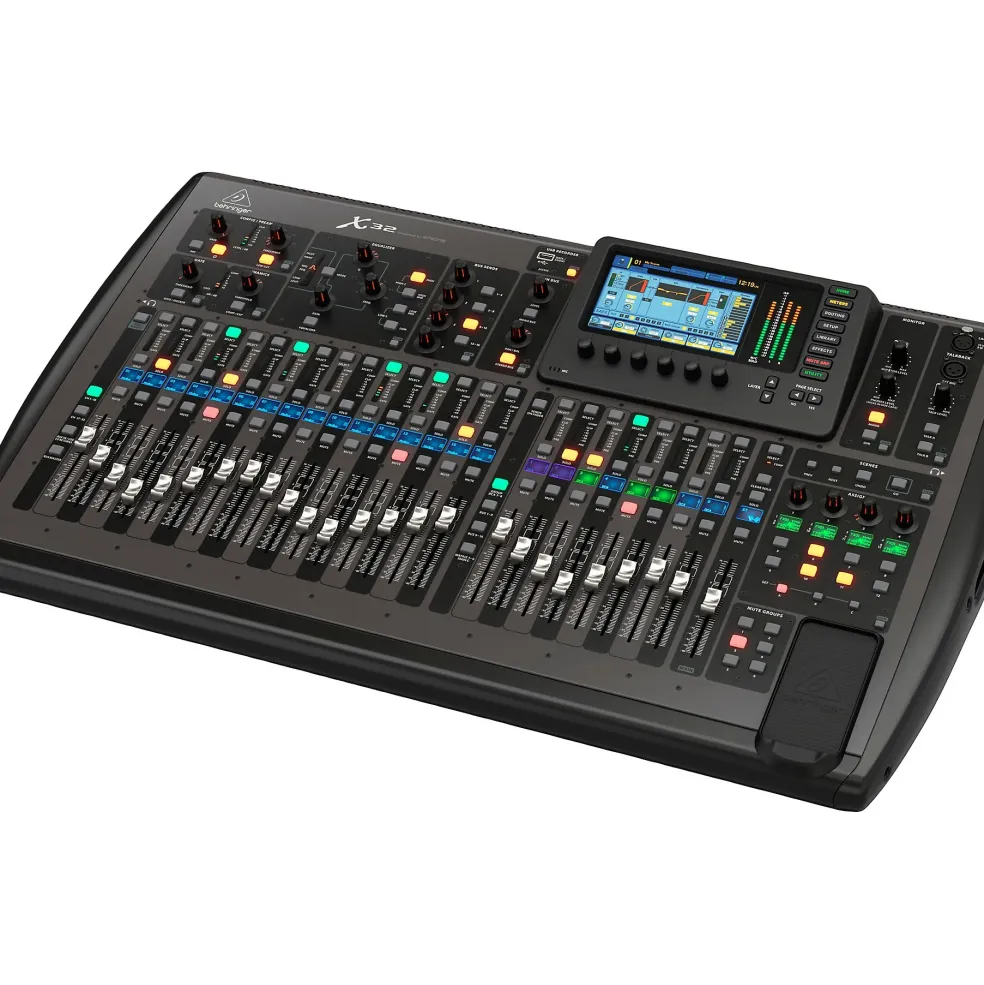

Behringer X32 40-Channel Digital Mixer
$122.89
The Behringer X32 digital mixer represents a true paradigm shift in live sound mixing. As the flagship console of Behringer’s acclaimed X32 family, it delivers pristine audio quality and an unmatched feature set that shatters expectations of what’s possible in a compact digital mixer. With 40 inputs, 25 busses and 32 programmable Midas-designed mic preamps, the X32 provides all the routing flexibility and channel count you need for sophisticated productions.
- 40-channel total recall digital mixer with fully programmable mic preamps
- 16 mix buses, configurable as subgroups
- Main LCR and all 16 mix buses featuring inserts, 6-band parametric EQs and dynamics processing
- 16 analog XLR outputs plus six additional line in/outputs, two phones connectors and a talkback section
- 48-channel digital snake ready via AES50 ports
- Built-in expansion port for Firewire/USB/ADAT
- Virtual FX rack featuring eight true-stereo FX slots for high-end simulations of famous outboard gear
- Ultrahigh power 32-bit floating-point DSP features “unlimited” dynamic range, no internal overload and near-zero latency

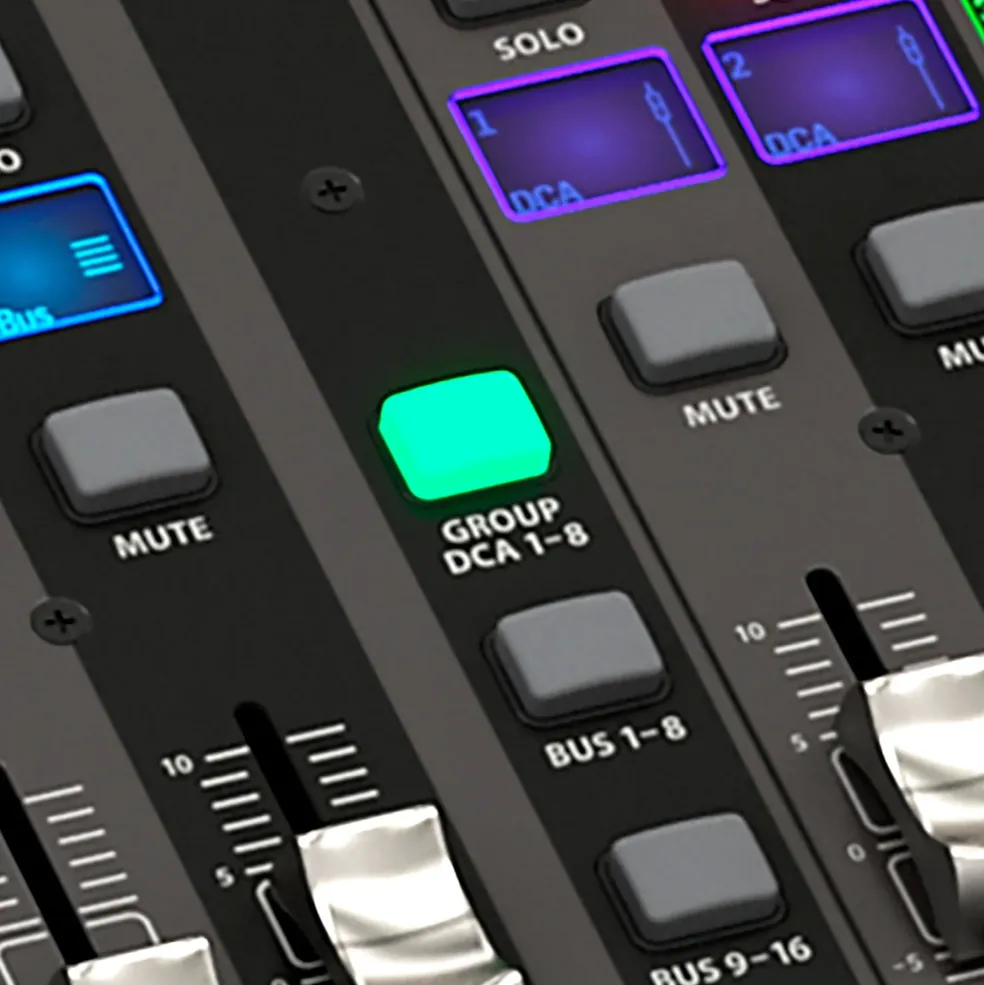

- Six mute groups and eight DCA groups on eight dedicated 100 mm motorized faders

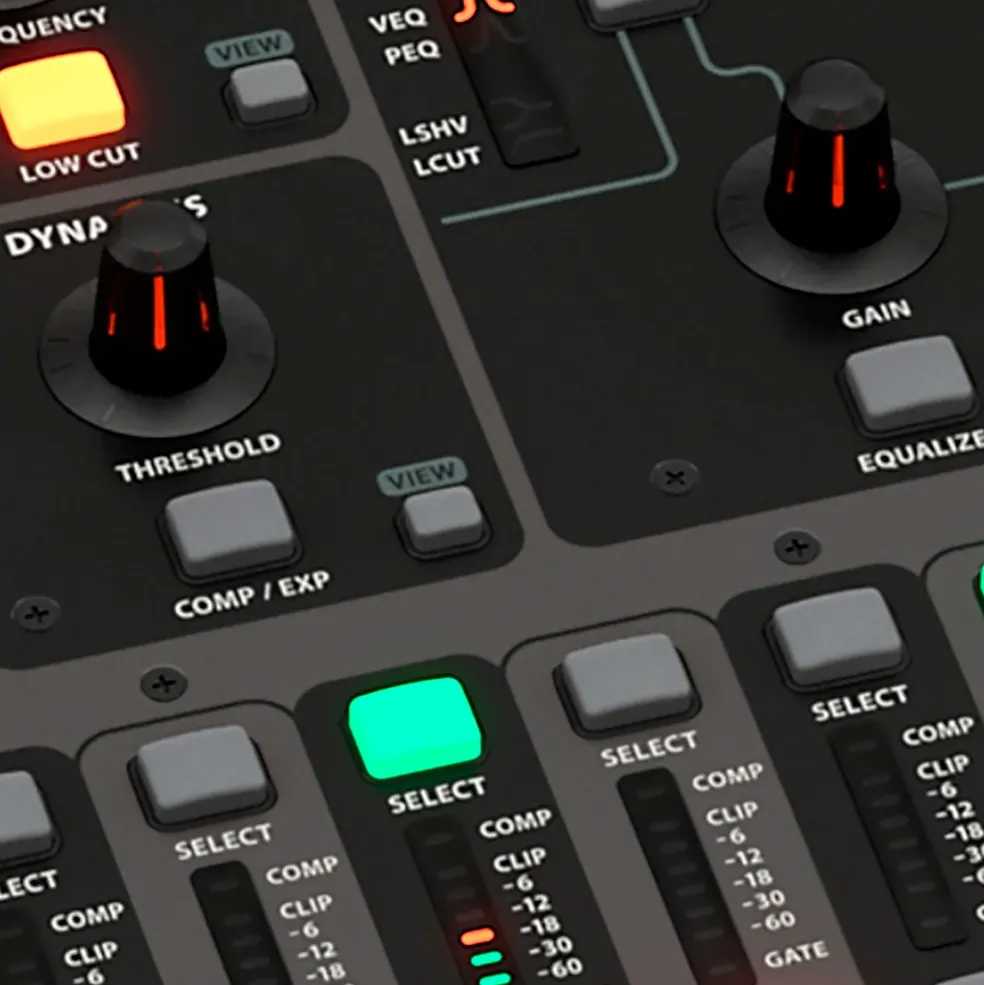

- Super easy user interface and dedicated channel strip section

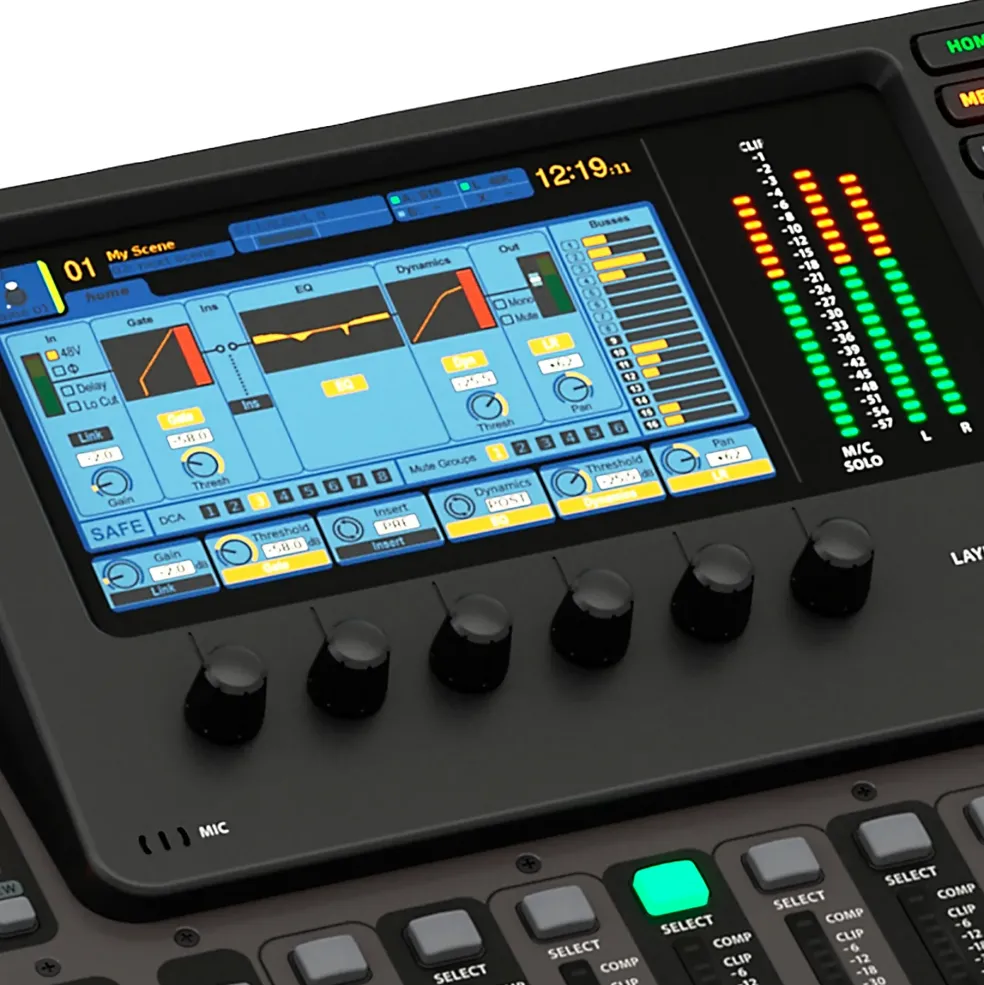

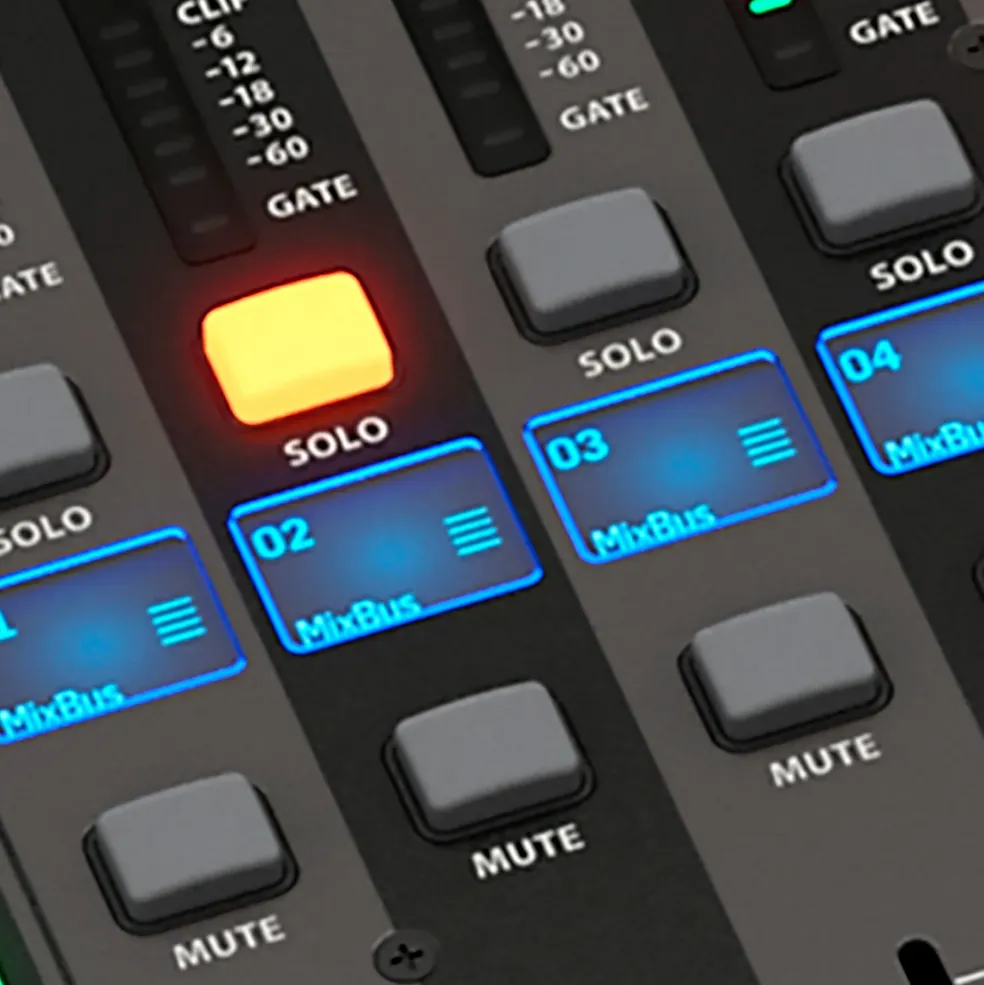

- High-resolution 7″ color TFT with associated controls and individual RGB backlit graphic LCDs in every channel
- USB flash connector providing file storage for uncompressed recordings, plus show presets and system updates
- Six independent matrix mix buses featuring inserts, 6-band parametric EQs and dynamics processing
- Adjustable line delays available on all physical in and outputs
- Networked remote control or show setups with remote editor software via USB and Ethernet ports (included)
- Powerful scene management for convenient handling of complex productions
Number of input processing channels
- 32 input channels, eight AUX channels, eight FX return channels
Internal effects engines
- True-stereo / mono: 8/16
Internal total recall scenes
- (Incl. preamp and fader): 100
Signal processing
- 40-bit floating point
A/D-D/A conversion
- 24-bit @ 44.1/48kHz, 114dB dynamic range
I/O latency
- (Console input to output): 0.8 ms
- (Network latency (stagebox in > console > stagebox out)): 1.1 ms

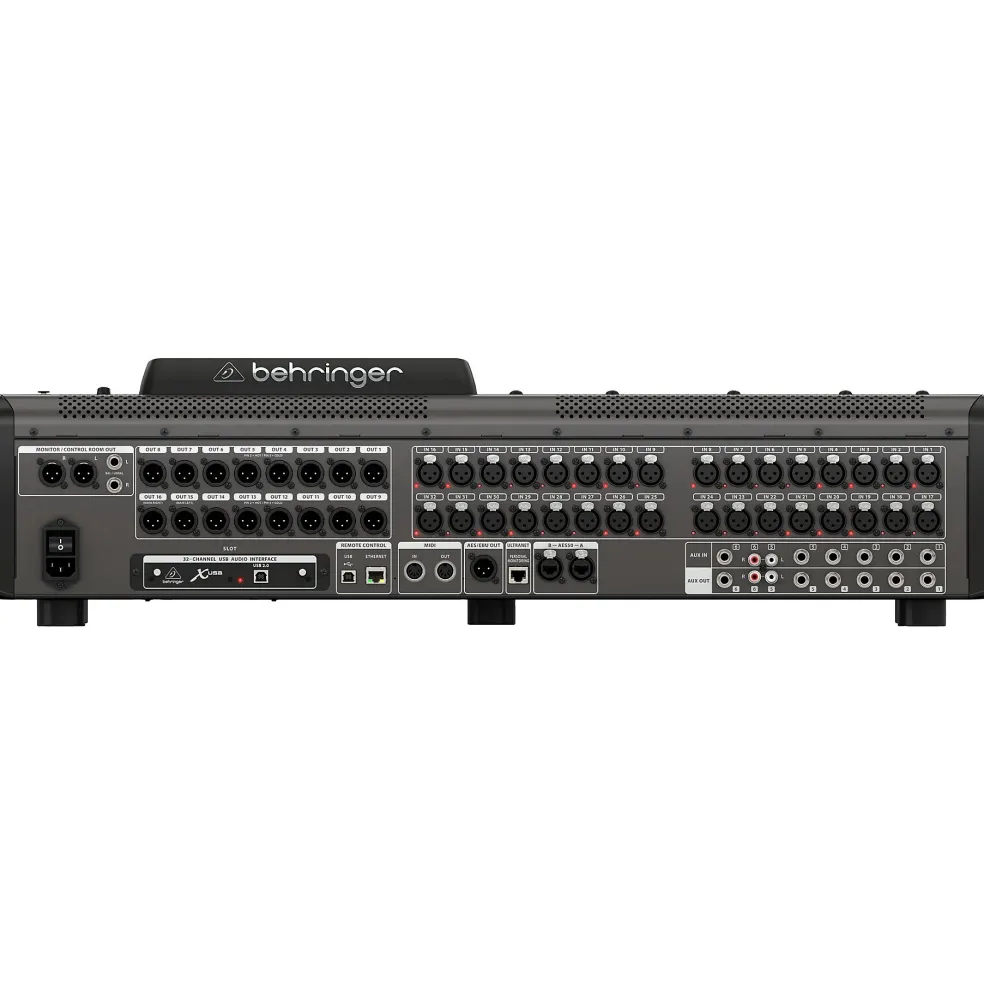

Connectors
- XLR inputs, programmable mic preamp, designed by MIDAS: 32

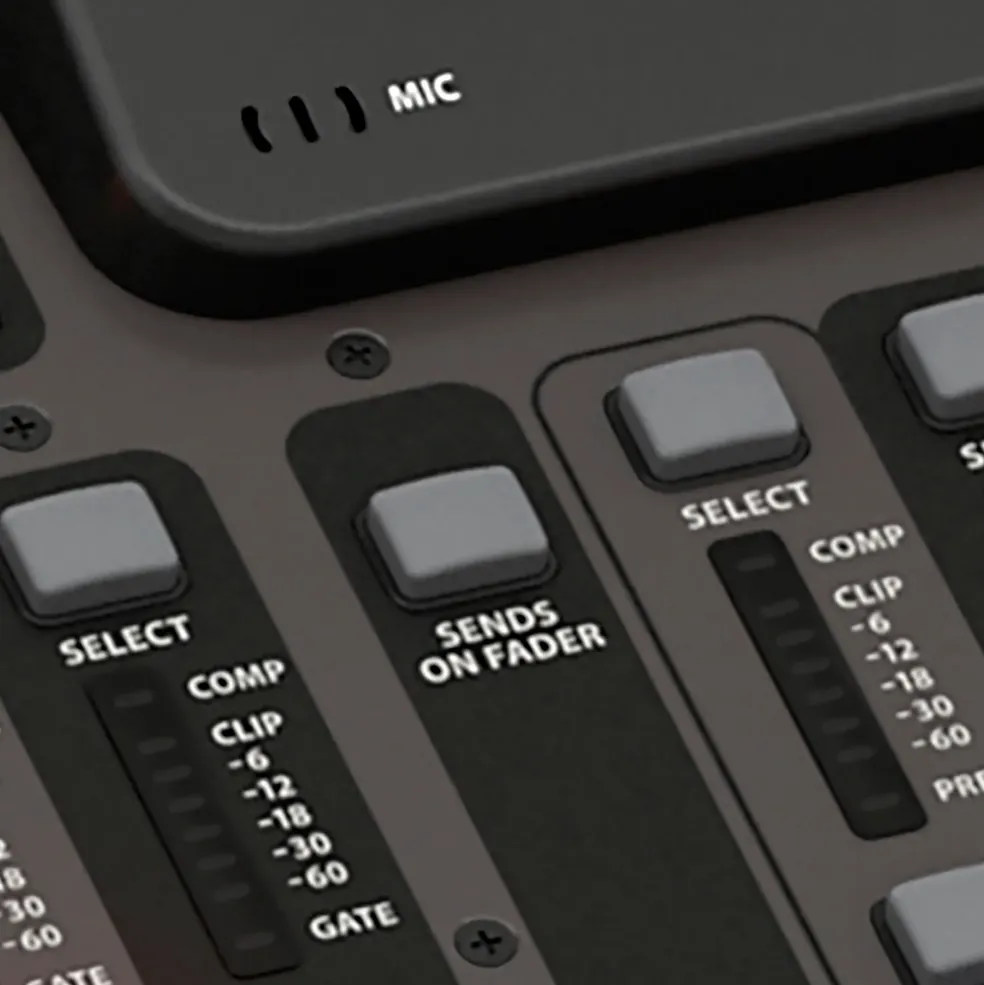

- Talkback mic input, XLR: 1
- RCA inputs/outputs: 2/2
- XLR outputs: 16
- Monitoring outputs: XLR / 1/4″ TRS balanced: 2/2
- AUX inputs/outputs: 1/4″ TRS balanced: 6/6
- Phones outputs: 1/4″ TRS: 2 (stereo)
- Digital AES/EBU output, XLR: 1
- AES50 ports, SuperMac, Neutrik ethercon: 2
- Expansion card: 32 channel audio input/output, various standards
- P-16 connector, Ultranet (no power supplied): 1
- MIDI inputs/outputs: 1/1
- USB Type A, top panel, for audio and data export/import: 1
- USB Type B, rear panel, for remote control: 1
- Ethernet, RJ45, rear panel, for remote control: 1
Mic Input Characteristics
- Design: MIDAS
- THD + noise, 20dB gain, 0dBu out: < 0.006% A-weighted
- Input impedance XLR, unbal./bal.: 5 kohm/10 kohm
- Non clip maximum input level, XLR: +23dBu
- Phantom Power, switchable per input: 48V
- Equivalent input noise level, XLR (input shorted): -128dBu
- CMRR, XLR, @ 20dB gain (typical): > 70dB
- CMRR, XLR, @ 40dB gain: > 80dB
Input/Output Characteristics
- Frequency range, @ 48kHz sample rate, 0dB to -1dB: 10Hz–22kHz
- Dynamic range, analog in to analog out (typical): 106dB
- A/D dynamic range, preamp and converter (typical): 109dB
- D/A dynamic range, converter and output: 108dB
- Cross talk rejection @ 1kHz, adjacent channels: 100dB
- Output level, XLR, nom./max.: +4dBu/+21dBu
- Output impedance, XLR, unbal./bal.: 75 ohm/75 ohm
- Input impedance TRS Jack, unbal./bal.: 20 kohm/40 kohm
- Non clip maximum input level, TRS: +16dBu
- Nominal output level, TRS: +4dBu/+16dBu
- Output impedance, TRS, unbal./bal.: 150 ohm/300 ohm
- Phones output impedance/level: 40 ohm/+25dBm (stereo)
- Residual noise level, XLR and TRS: -87dBu A-weighted
Display
- Main screen: 7″, 800×480, 262k color TFT
- Channel LCD screen: 128 x 64, LCD with RGB color backlight
- Main meter: 24-segment (-57dB to clip)
Power
- Switch-mode power supply: Autorange 100-240V (50/60Hz)
- Power consumption: 120W
Physical
- Standard operating temperature range: 5°C–40°C (41°F–104°F)
- Dimensions: 35.4 x 20.8 x 7.9″
- Weight: 45.4 lb.
