In order to adjust the sound of the Sub15 to different room situations or individual taste, we have implemented several controls including one for volume (-60dB to +6dB) and one for the crossover frequency (50Hz–150Hz). The satellite speakers can either be driven full range or high pass filtered at 85Hz. This allows the Sub15 to be easily integrated into a Dolby surround setup. Unfavorable phase relationships between the satellites and the subwoofer, particularly in the crossover frequency range, can be easily controlled with the supplied phase reverse switch.
The Sub15 is also very flexible when it comes to connectivity: There are balanced (XLR) and unbalanced (RCA) input/output connectors to be found on the rear of the subwoofer.

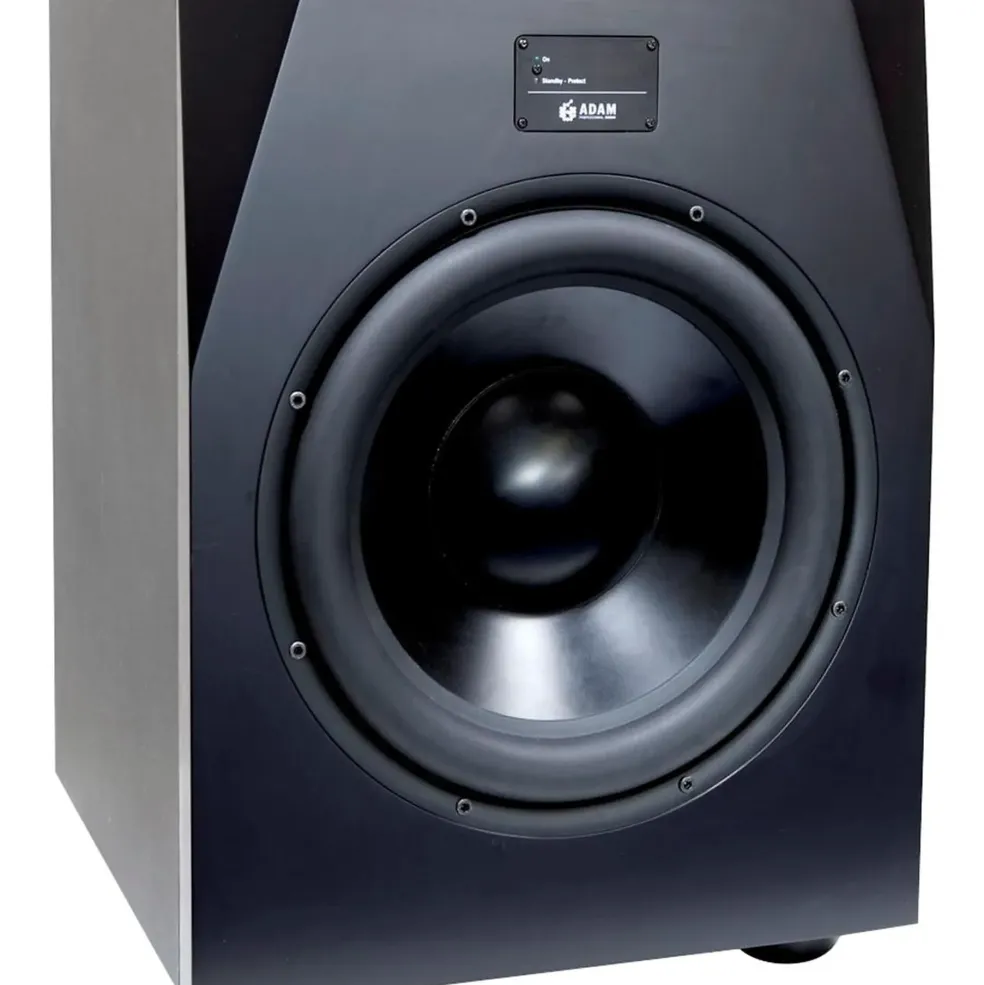

The Sub15 combines excellent transient response capability with an impressive low-frequency performance to enable a genuinely musical reproduction experience. With a high and undistorted sound pressure output of 120dB maximum SPL at one meter, the Sub15 makes the perfect subwoofer for mid-sized and larger control rooms.
ADAM Audio Subs
ADAM Audio subwoofers are designed with one primary goal in mind: Achieving absolute accuracy and an authentic natural sound in the process of music reproduction. This means combining exceptional bass power with precision and clarity in every subwoofer. These elements are the perfect partners to complement the highly acclaimed clarity and transparency of ADAM monitors in the lower and lowest frequencies.
All subwoofers feature both balanced (XLR) and unbalanced (RCA) input/output connectors and comprehensive control options that allow for adapting to different room acoustics and requirements.
Panel/Controls
All subwoofers feature a level control (-60dB to +6dB), phase switch (180) and a variable upper frequency control (50–150Hz). For the satellite outputs, an 85Hz high-pass filter can be switched in to block frequencies below 85Hz so satellite speakers can meet the Dolby recommendations for theater sound and also to relieve the satellites from the lower frequencies. In addition, you can either switch on/off the subwoofer manually or use the option of automatically powering up the subwoofer whenever it receives a signal (signal-on/ continuous).
Built-in Amplifiers
- Subwoofer: 1
- Type: PWM
- Amp. power RMS/music: 1,000W/1,200W
Input connectors
- Analog: XLR/RCA
General
- Frequency response: 20Hz–150Hz
- Max SPL with sine wave acoustic 100Hz to 3kHz at 1m: 120dB
- Crossover frequencies: 50–150Hz
- Dimensions WxDxH: 25″ (635 mm) x 18.5″ (470 mm) x 20.5″ (525 mm)
- Warranty: 5 years
- Includes: Power cord, Manual
