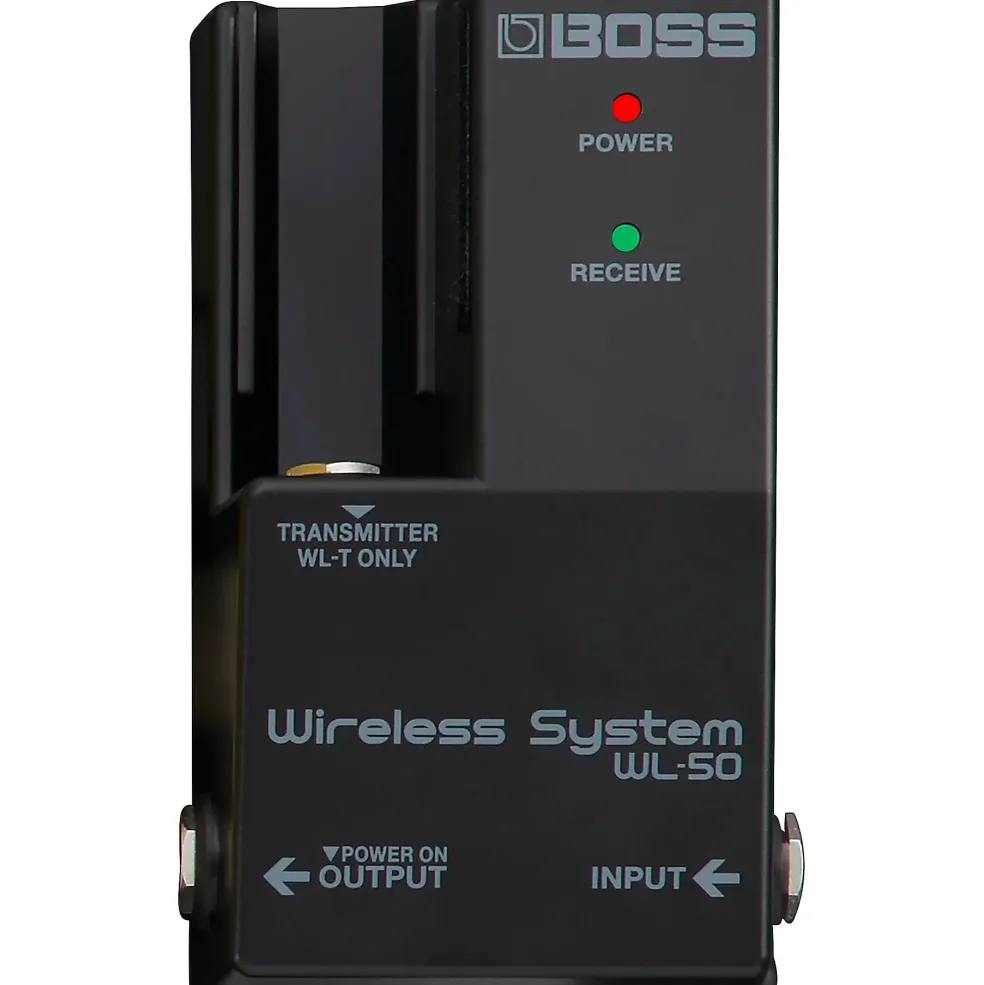

BOSS WL-50 Guitar Wireless System
$124.89
Once you experience the wireless independence provided by the WL-50, you’ll never go back to using a standard cable again! Setup is quick and simple, and you’re able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.
System includes receiver and transmitter.
Accessories
- Owner’s Manual
- Leaflet USING THE UNIT SAFELY
- Transmitter
- Rubber foot x 4
- Alkaline battery (AA, LR6) x 2
- An AC adaptor (PSA-S series) is required to charge the transmitter (WL-T).
Options (sold separately)
- AC adaptor: PSA-S series
- Parallel DC cord: PCS-20A (DC Plug x8)
Wireless FormatBOSS proprietary digital audio format
Wireless carrier frequency2.4 GHz
Compatible Channels14Â (May vary due to local conditions)
Transmission Range65 feet line-of-sight(May vary due to local conditions)
Latency2.3 ms
Dynamic Range110 dB or greater
Frequency Response20 Hz–20 kHz
Nominal Input Level-10 dBu
Input Impedance1 M ohm
Nominal Output Level-10 dBu
Output Impedance1 k ohm
Recommended Load Impedance10 k ohms or greater
ControlsC
able Tone switch (OFF/SHORT/LONG)
IndicatorsP
ower
Receive
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN jack
DC OUT jack
Power Supply
Alkaline battery (AA, LR6) x 2
AC adaptor (sold separately)
Current Draw
During wireless operation: 60 mA
While charging transmitter: 320 mA
Expected battery life under continuous use
Alkaline battery (AA, LR6): Approximately 10 hours
* These figures will vary depending on the actual conditions of use
Width
- 72 mm
- 2-7/8 inches
Depth
121 mm
4-13/16 inches
Height
- 56 mm
- 2-1/4 inches
Weight (including battery)
220 g
8 oz
S
pecifications-TransmitterÂ
- Nominal Input Level
10 dBu (1 M ohm)
Indicator
battery
ConnectorsÂ
Input plug: 1/4-inch TRS phone type,Â
DC IN 5 V port: USB Micro-B type
Power Supply
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port
Current Draw
350mA
Battery charging time
Approximately 3 hours
Expected battery life under continuous use
Approximately 12 hours
* These figures will vary depending on the actual conditions of use.
Width
- 87 mm
- 3-7/16 inches
Depth
- 22 mm
- 7/8 inches
- Height
- 36 mm
- 1-7/16 inches
- WeightÂ
