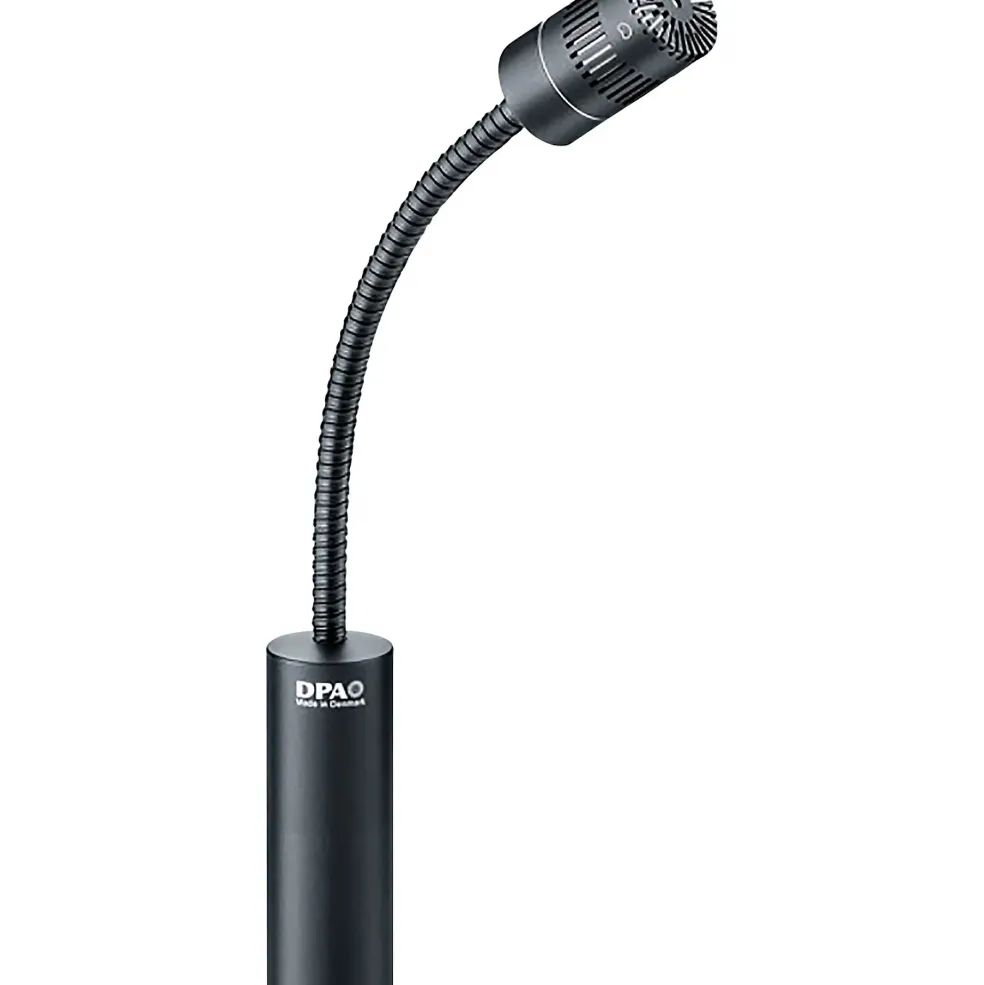

DPA Microphones 4011 Cardioid Mic, Black, XLR, 20 cm (8 in) Boom, Full Gooseneck

$136.89

SKU: SKU1500000408371 Categories: Condenser Microphones, Mics & Wireless Tag: DPA Microphones Brand: DPA Microphones

Description
Reviews (0)

The DPA Microphones 4011 Cardioid Mic is the ultimate floor stand solution, offering a high-quality stage voice or instrument mic. This 4011 Cardioid Mic delivers low noise and a natural voice and is highly direction for high isolation. Other features include a rapidly stabilizing microphone boom pole, modular flexibility, integrated shock-mounting in floor base, and an exclusive, elegant design.

Low noise and natural voice
Highly directional for high isolation
Uniform, frequency independent directionality
Exclusive, elegant design
Integrated shock-mounting in floor base
Rapidly stabilizing microphone boom pole
Modular flexibility

Directional pattern: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency response: 20 Hz – 20 kHz
Effective frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz – 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (max. 27 dB)
Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, THD 10%: 144 dB SPL peak
Rated output impedance: 100 Ω
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing
Common mode rejection ratio (CMRR): > 40 dB
Power supply (for full performance): P48 (Phantom Power)
Current consumption: 3.5 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Color: Matte black
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: Capsule: 23 mm (0.9 in), Boom poles: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in)
Maximum output voltage, RMS: 2.2 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ±1 dB
Phase deviation for kit: < 10°
