DPA Microphones d:dictate ST4011C Stereo Pair with 4011C Compact Cardioids

DPA Microphones d:dictate ST4011C Stereo Pair with 4011C Compact Cardioids

Original price was: $3,930.00.Current price is: $130.89.

SKU: SKU1410274581661 Categories: Condenser Microphones, Mics & Wireless Tag: DPA Microphones Brand: DPA Microphones

Description
Reviews (0)

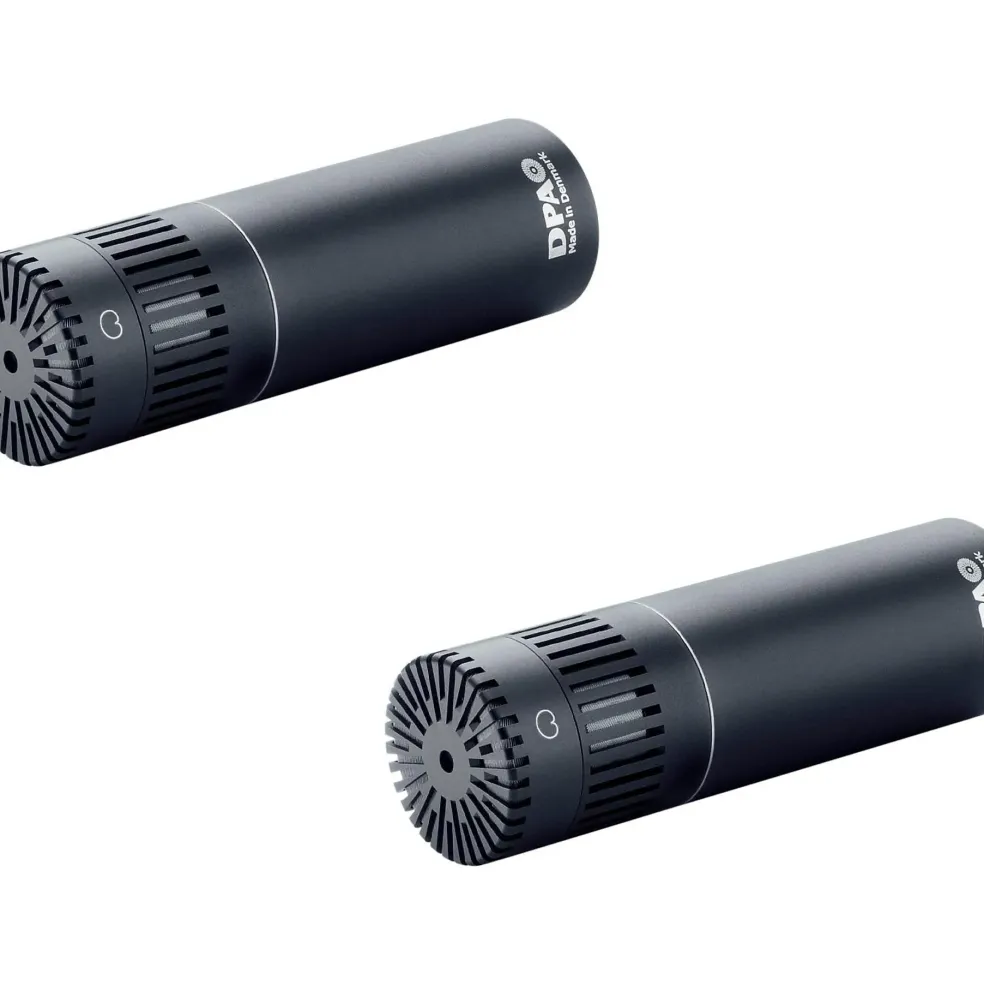

Whenever a small, lightweight, inconspicuous microphone for top-quality sound is required, the compact design and uniform unidirectional response of the d:dictate 4011C makes it the perfect choice. They are particularly popular as spot mics for classical recording and on-stage close mics for live sound.

The DPA ST4011C is a complete DPA 4011C Stereo Pair with two carefully factory-matched first order cardioid microphones. Even though the standard tolerances on DPA Reference Standards are extremely low, a stereo match is even closer. The specially selected DPA 4011C microphones are matched within ±1 dB on both frequency response and sensitivity.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Excellent for both PA/Live and recording
Carefully matched within ± 1 dB
Low profile mounting options
Peli Case transportation and protection

Directional pattern: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz – 20 kHz
Frequency range, ± 2 dB, at 30 cm: 40 Hz – 20 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 Pa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, peak before clipping: 152 dB
Output impedance: < 200 ohm
Minimum load impedance: 2 kohm
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 50 dB
Power supply (for full specifications): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Color: Matte black
Weight: 58 g (2 oz)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 64 mm (2.5 in)
Output voltage, RMS: > 4 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40 C to 45 C (-40 F to 113 F)
Relative Humidity (RH): Up to 90%
Matching tolerance: ± 1 dB
Phase deviation for kit: < 10
