$130.89

SKU: SKU1500000338172 Categories: , Tag: Brand:

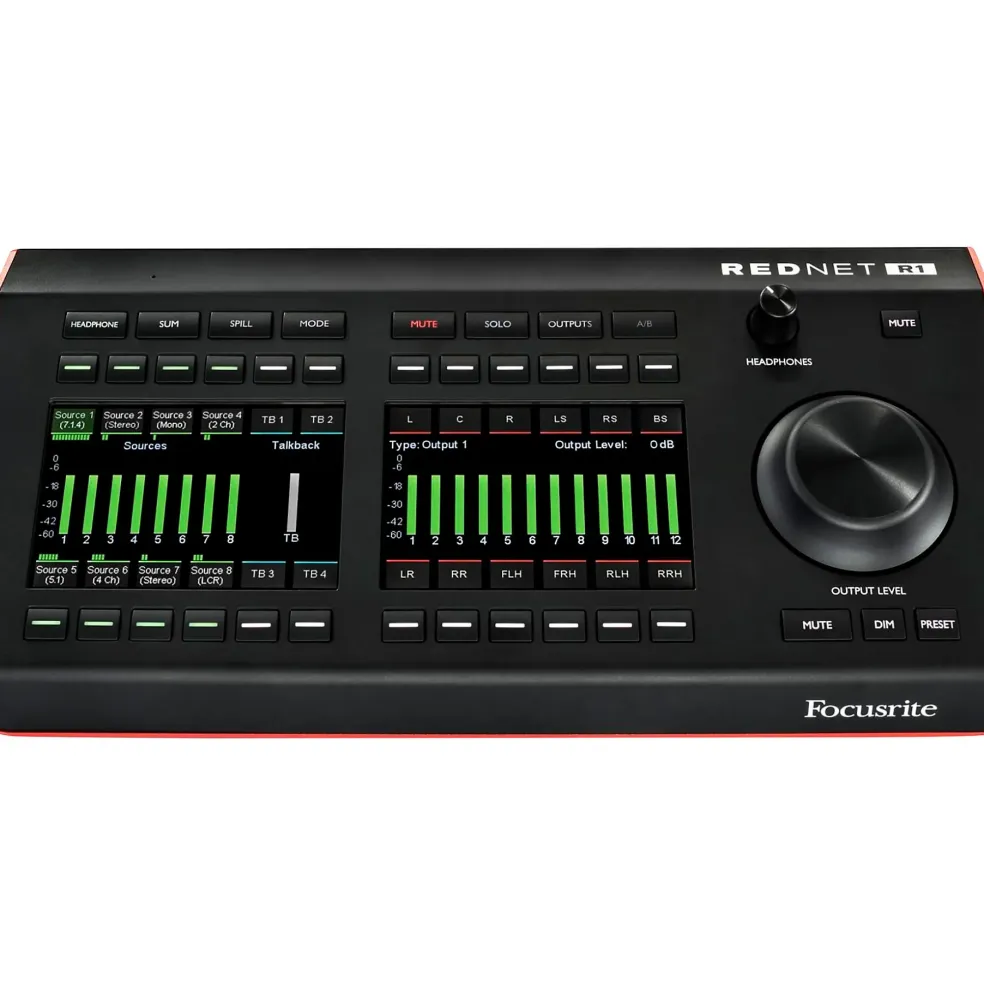

RedNet R1 enables users to interact with their audio system like never before. It provides the flexibility to control a range of different monitor output setups, ranging from mono through to 7.1.4 surround, including Dolby Atmos and other immersive audio workflows. Alternatively, completely custom setups of up to 12 outputs can be configured for bespoke speaker configurations. RedNet R1 can be used to control groups of outputs from a Red interface’s multitude of sources and destinations, including from Pro Tools | HD and other DAWs, analog inputs and outputs, ADAT and S/PDIF connections, and from entire Dante audio ecosystems, simultaneously and interchangeably.

RedNet R1 supports a maximum of eight input sources from 32 available audio channels, across analogue, digital, DAW and Dante connections, and mixes and routes signals to up to 12 monitor output channels. Top-panel control includes level, reference level preset selection, cut, dim, mute and a variety of solo modes. There’s an A/B switch for switching between numerous monitoring presets, and up to four fold-down presets allow fast switching for checking down mixes. Custom cue mixes can be sent to talent from any of the 32 available inputs.

RedNet R1 also features a Dante-enabled talkback section, internal mic-pre and a high-powered headphones output, so you can interact with your Dante system like never before. Up to four talkback destination groups are available when used with a Red interface. (When used with other Dante devices, a single talkback group is available.) RedNet R1 has an internal microphone, or users can connect their own microphone via the rear-panel XLR. The high-fidelity headphone output is powerful enough to deliver high-SPL audio to high-impedance headphones.

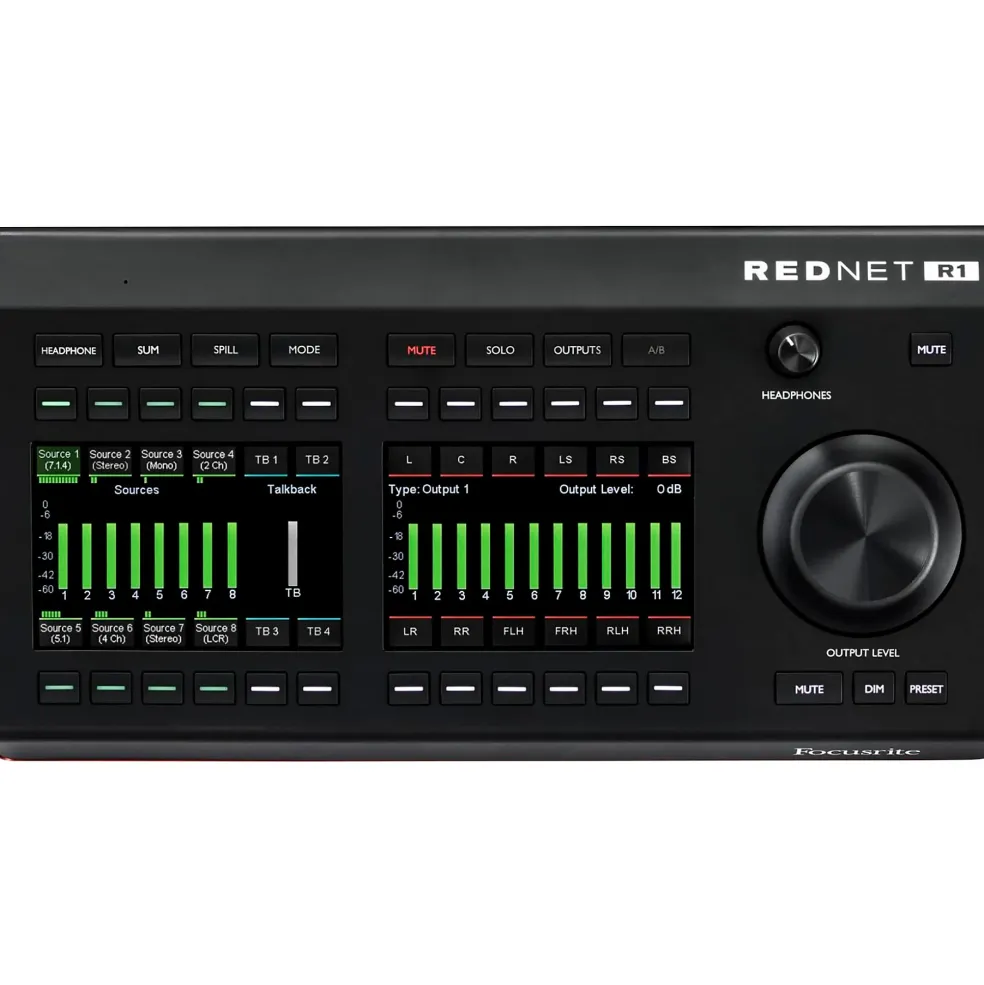

RedNet R1 features two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus. The unit is configured using RedNet Control2, the software manager designed primarily for ease of use in quickly setting up both simple and complex monitoring and routing configurations. Other features of the RedNet R1 include a 1/4″ jack socket, which accepts a footswitch for talkback management, LFE muting and more. It can be powered via Ethernet to reduce cabling complexity (using the PoE standard), or by a DC power supply.

Included Software
RedNet Control Software mixer with a hardware-focussed workflow, which is designed to allow quick setup of both simple and complex monitoring and routing configurations.

Brainworx bx_console Focusrite plug-in
This awesome plug-in recreates the analog signal paths of Focusrite’s revered ISA 110 and ISA 130 modules, which were a part of the Focusrite Studio Console. Designed and coded by the DSP geniuses at acclaimed software house Brainworx, the new bx_console Focusrite VST/AU/AAX plug-in for Mac and PC faithfully captures the sound, feel and styling of the original iconic hardware.

If you purchased any Red, RedNet or ISA solution from January 2020 on, you will have the plug-in available in your Focusrite account as long as you’ve registered your product.

3-Year Warranty
Wherever you happen to be in the world, you can rely on a three-year warranty if any Focusrite hardware needs repairing or replacing due to a manufacturing fault. Focusrite will send you replacement gear in the U.S., and they’ll cover the shipping costs both ways.

Desktop remote controller for Red audio interfaces

  • The first Dante Pro Tools |HD and Thunderbolt interface system with a monitor controller

Switch and sum

  • Supports a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sources

Flexible monitor control

  • Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes

Monitor fold-downs

  • Up to four fold-down presets allow fast switching for checking downmixes

Talkback & headphones functionality

  • Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources

Built-in Microphone

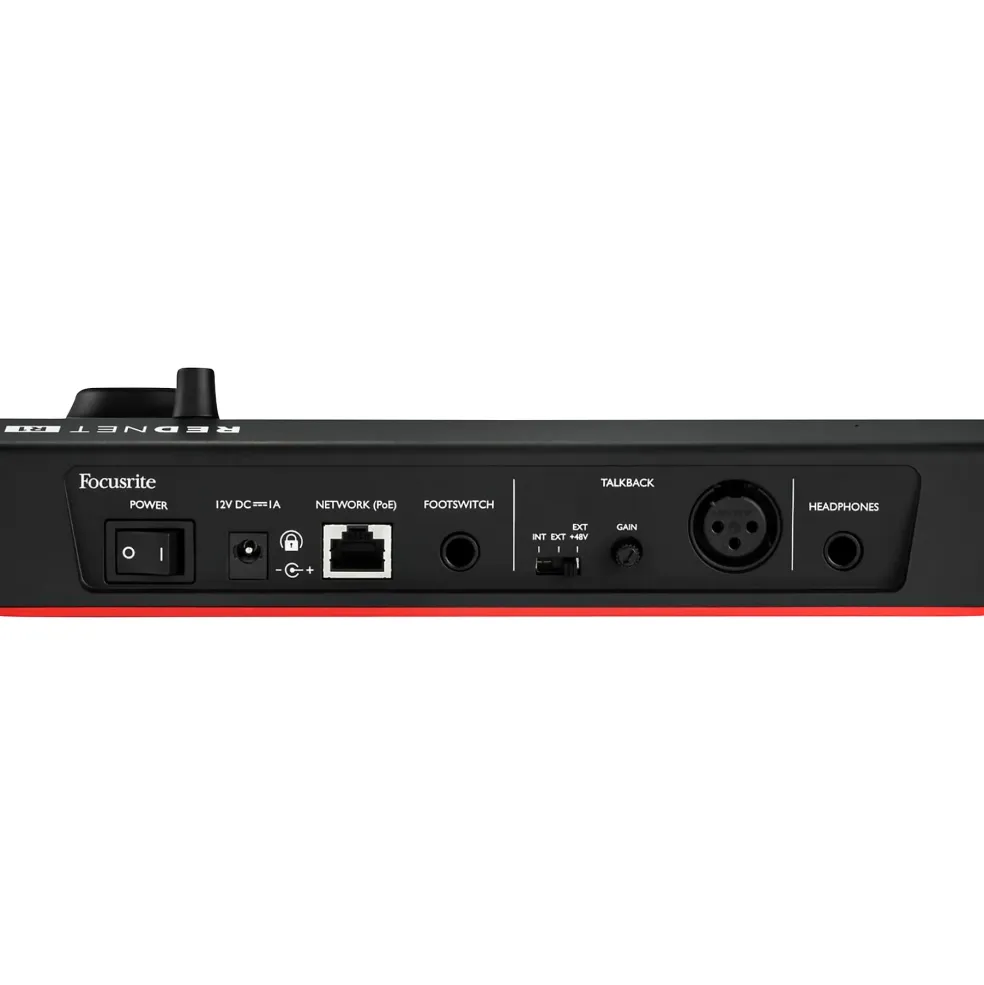

  • RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR

Precision metering and display

  • Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus

Software setup with hardware-focussed workflow

  • RedNet Control is designed for quickly setting up simple or complex configurations

Footswitch input

  • Quarter-inch jack socket accepts a footswitch, for talkback management, LFEmuting and more

Power-over-Ethernet (PoE) support
