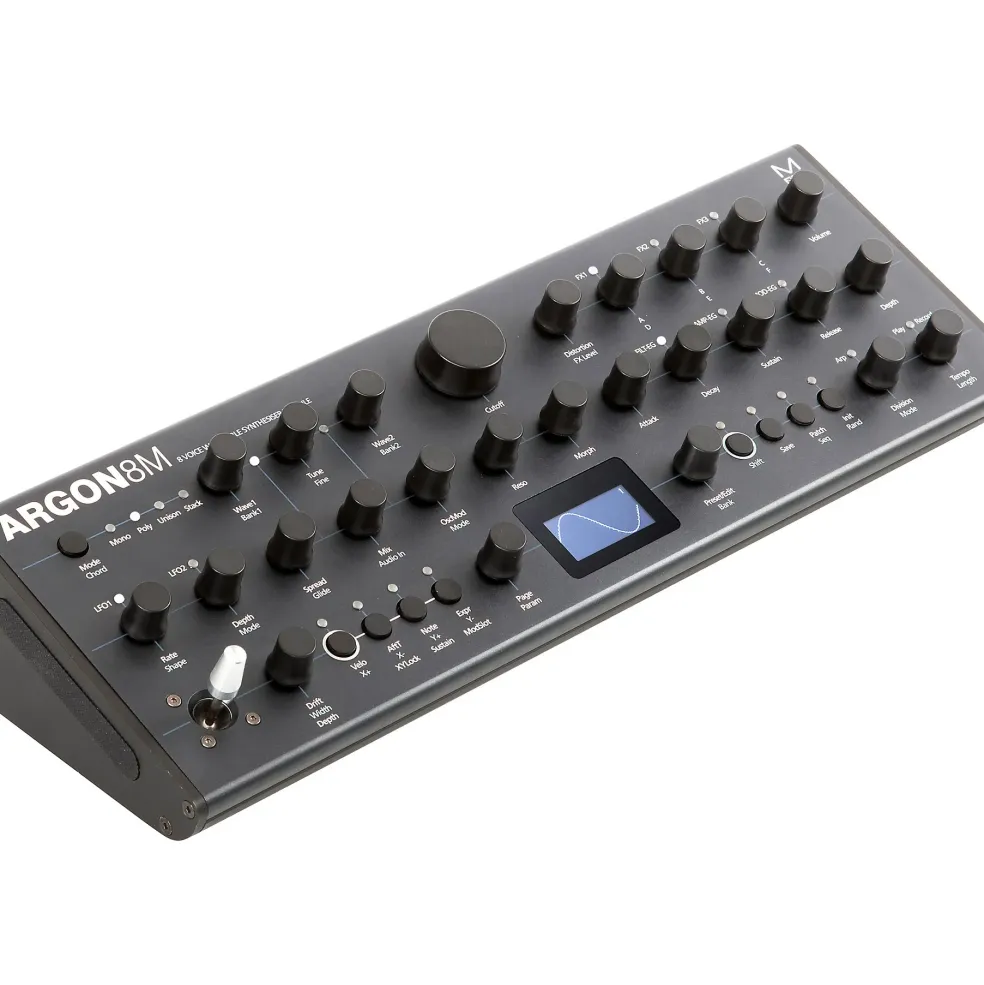

Modal Electronics Limited Argon8M 8-Voice Polyphonic Wavetable Synthesizer Module
$140.99
The Modal Argon 8M has four digital oscillators per voice split into two controllable wavetables. You have 32 different options to redraw each wavetable with its innovative offline wave modifier. The modulable oscillator modifier on each patch also has eight modifier types.
The Argon8M offers four flexible multi-mode filters and three dedicated, flexible envelope generators. These include AMP, MOD and FILTER. Each can be accessed independently or be controlled simultaneously.
Argon8M boasts a powerful Mod Matrix with eight assignable slots and four additional fixed routes, 11 mod sources and 52 destinations. The four-axis joystick can be assigned to a huge range of modulation destinations and can be locked in place when desired.
There are two Audio rate LFO’s with tempo sync (one poly, one global). Polyphonic LFO can sync to frequency divisions. Argon8M has 12 onboard FX: a waveshaping distortion followed by three independent and user-configurable stereo FX engines that can create sophisticated delays, lush reverbs, flanging, phasing, rich choruses and much more.
Along with a full complement of I/O, the Argon8M features a USB port to connect your synth to the MODALapp user interface on a computer tablet or phone. This can be used for creating and managing and presets, as well as updating the firmware on your Argon8M.
The Argon8M’s road-ready chassis is manufactured with high-quality components. It has a powder-coated black steel case and anodized aluminum top panel.
- True 8-voice polyphonic synth in road-ready steel/aluminum chassis
- Built-in programmable arpeggiator—32 steps with rest capability up to 2048 steps before repeating
- 1.54″ OLED display—provides instant visual feedback to the user at all times of playing/editing
- 120 wavetables split into 24 banks of 5 morphable waveform sets, covering virtual analog classics through to cutting edge EDM
- 1.54″ large OLED display
- 120 wavetables split into 24 banks of 5 morphable waveform sets
- Additional PWM bank and 3 noise/modulation banks accessible on Oscillator 2
- 32 static wavetable modifiers including, de-rez, wave folders, wave shapers, phase shapers and rectify that can be applied to the 120 wavetables to give a mind-boggling array of permutations and new waveshapes.
- 32 high resolution wavetable oscillators, 4 per voice
- 8 types of oscillator modifier including: Phase Mod (FM), Ring Mod, Amp Mod, Hard Sync and Windowed Sync
- Voice Drift and Width controls that help to create massive stereo soundscapes
- Multiple keyboard modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4
- Glide/Portamento with both legato and staccato modes
- 4 Filter types: all filters types are 2 pole state-variable filters, the ‘Standard’ filters are based on the resonant filter found in other Modal products (SKULPTsynth, CRAFTsynth2.0). The ‘Classic’ types have a more rounded character and a softer resonance response.
- 8 assignable modulation slots, 4 additional fixed modulation routings for common assignments
- 11 modulation sources, 52 modulation destinations
- 4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired
- 3 dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously including negative (reverse) versions
- 2 Audio rate LFO’s with tempo sync (one poly, one global). Polyphonic LFO can sync to frequency divisions
- Waveshaping distortion
- 3 independent and user configurable stereo FX engines for Chorus, Phaser, Flanger (Pos), Flanger (Neg), Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb that can be arranged in any order
- 32-step programmable arpeggiator
- Real time sequencer with 512 notes with input quantise and four recordable / editable parameter animations (Delay FX, LFO’s, sequencer and arpeggiator can be either clocked internally or externally)
- 500 patch memories, all fully editable and ships with 300 factory programs
- 200 user patch spaces. Patch upload and download through the free MODALapp
- 100 sequencer presets that can be linked to any patch for quickly loading arrangements
- 100 FX presets
- 8 Quick Recall slots accessible from the panel for quickly loading your favorite patches
- Analog clock sync in and out (configured to the KORG / Teenage Engineering specification)

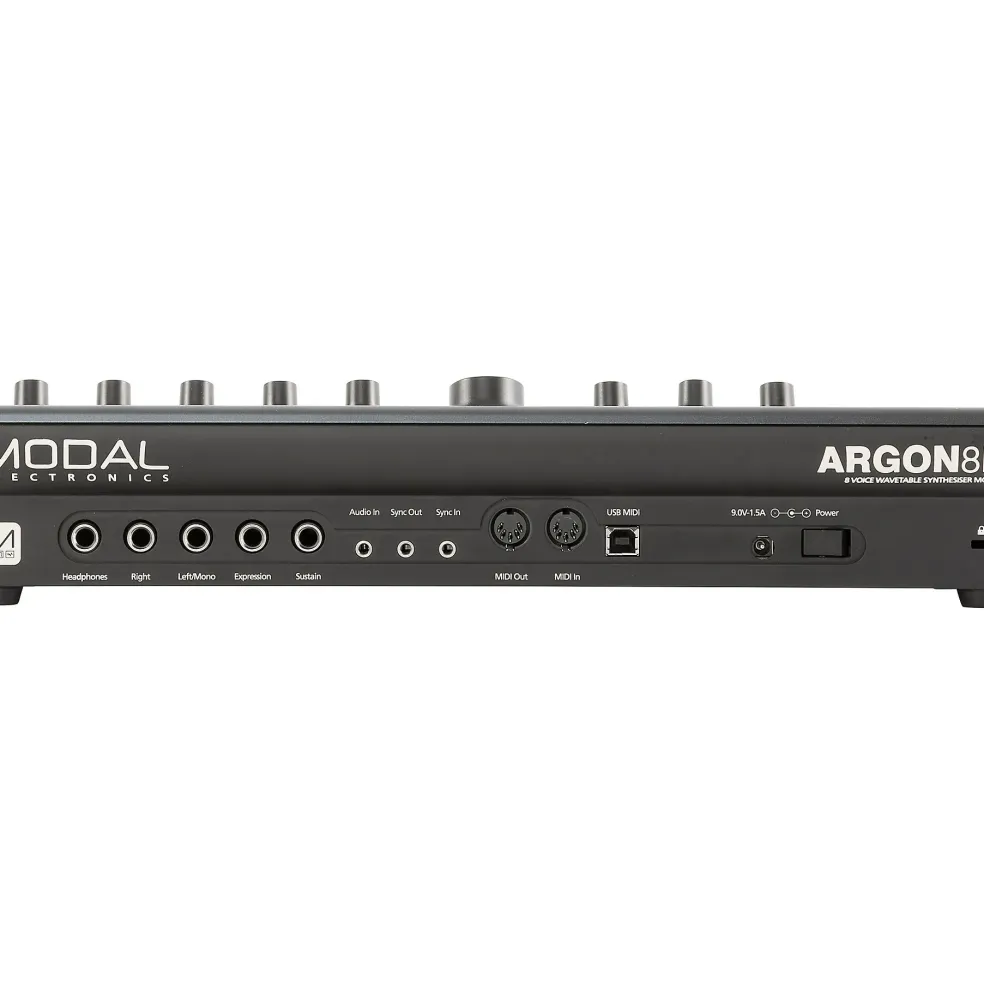

- CONNECTIVITY
- MIDI DIN in and out, class compliant MIDI provided over USB connection to host computer or tablet
- Full-size ¼” jacks for stereo audio outs, headphones and external control such as sustain and expression
- 3.5 mm stereo input with ability to route incoming audio through the FX
- GENERAL
- Power: DC-9.0V – 1.5A center-positive
- Dimensions (W x D x H): 15″ x 5″ – 3″ (384 mm x 127 mm x 80 mm)
- SOFTWARE
- Optional MODALapp software editor available for macOS, Windows, iOS and Android
- MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available
