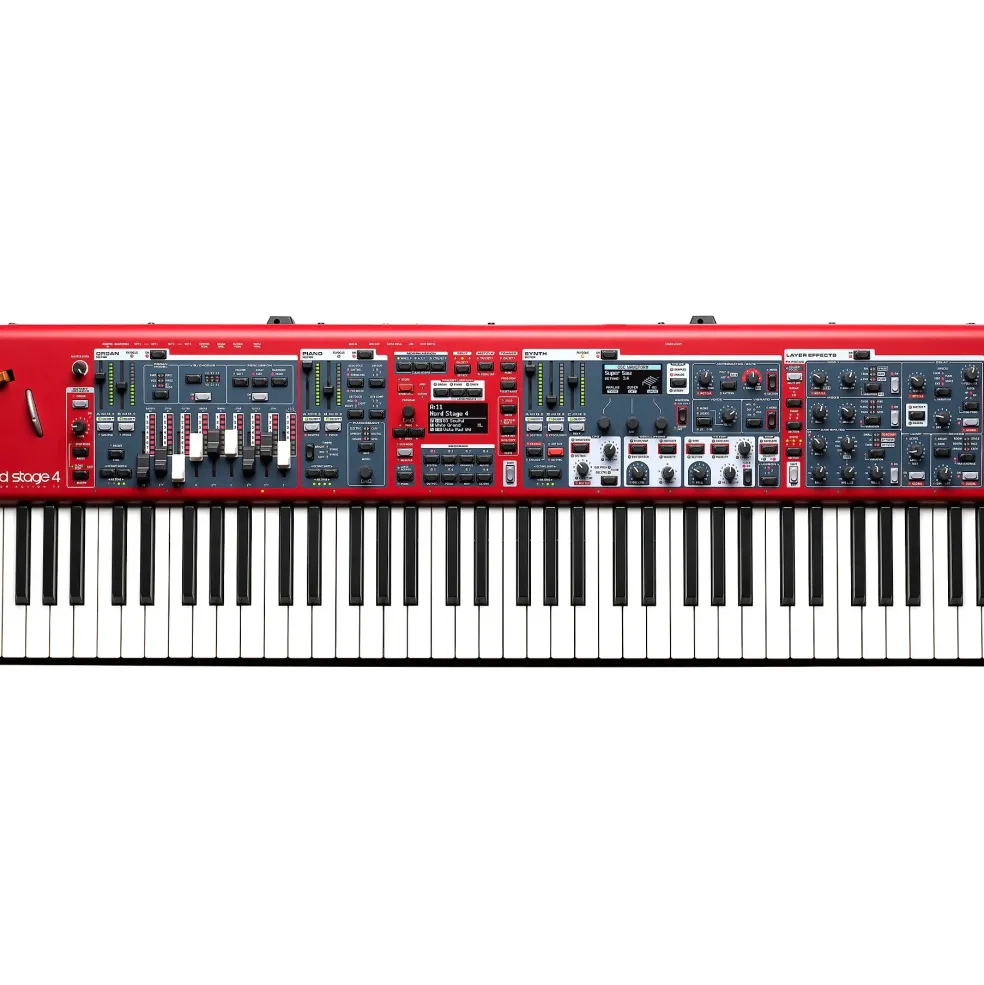

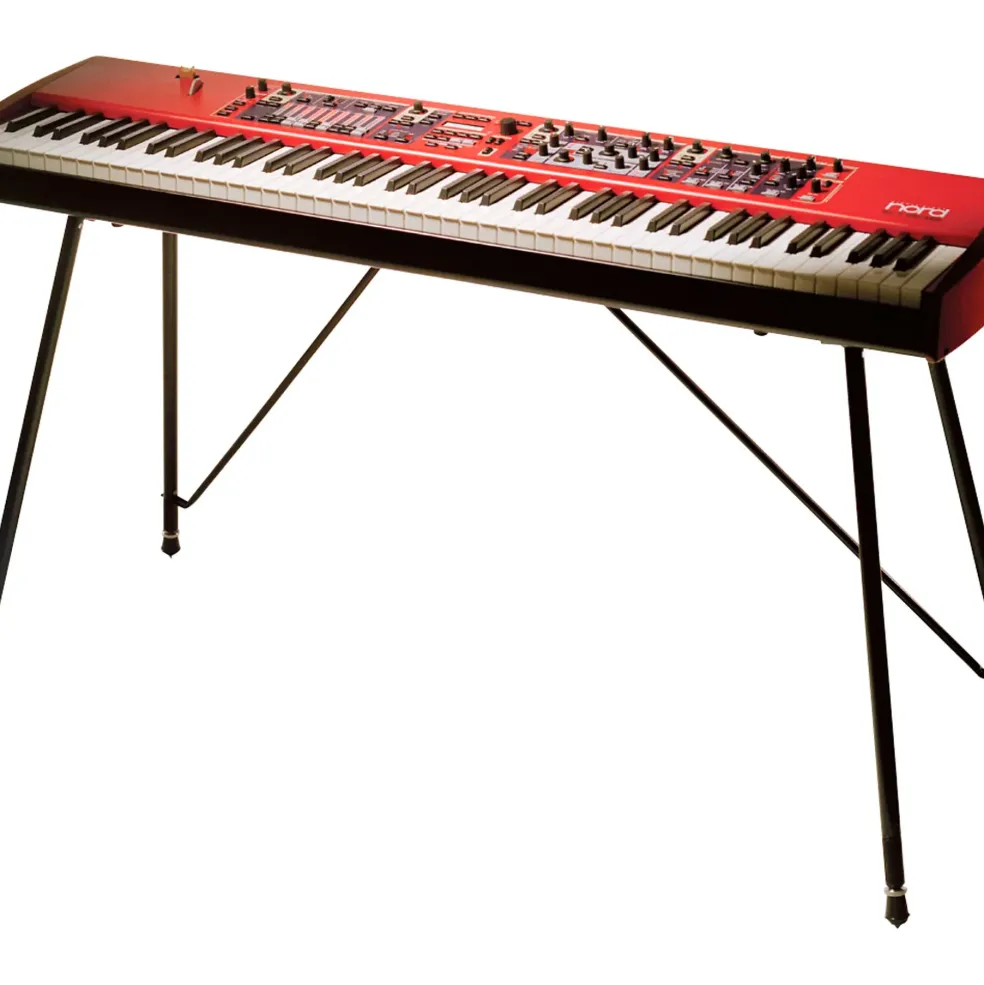

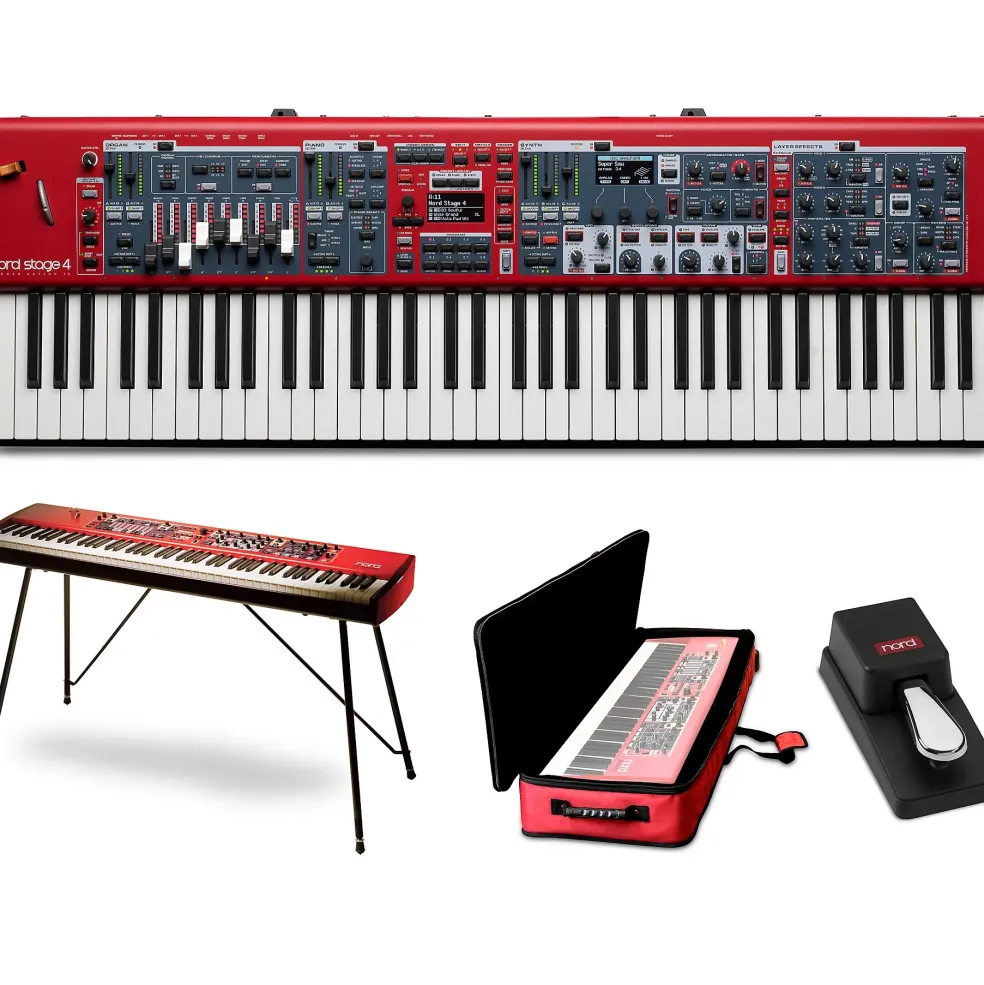

Nord Stage 4 73-Key Keyboard With Nord Soft Case, Single Pedal and Stand EX

• Master Level Control
• Wooden Pitch Stick
• Modulation Wheel
• 512 Programs—8 Banks with 8 Pages each; each Page has 8 Program locations
• Preset Library with Organ, Piano and Synth Presets including effects; 2×64 Organ Preset locations, 2×64 Piano Preset locations, 8×64 Synth Preset locations
• 8 Live Programs
• 2 Individual Layer Scene Setups
• 3 Morph sources: Modulation Wheel (also controllable by Swell pedal), Control Pedal, Aftertouch
• Stereo and Mono output routing options
• Programmable Transpose +/- 6 semitones
• Master Clock functionality with manual, external and tap-tempo rate control
• Internal and MIDI clock source
• MIDI over USB functionality
• Level control
• Aftertouch
• Up to 3 Split Points (4 Keyboard Zones) with visual LED indication between zones
• 3 Split Point width (crossfade) options: Lrg, Sml or Off

Organ Section

• Nord C2D B3 Tone wheel Organ simulation
• VOX Continental and Farfisa models
• 2 Digital Pipe Organ models
• B3 Bass mode
• Physical Drawbars with LED graphs
• Preset or Drawbar Live mode
• Percussion controls
• Vibrato/Chorus control
• 2 Layers (2-Part Multitimbral)

Piano Section

• 2GB memory for Piano sounds
• All sounds can be replaced using Nord Sound Manager (Mac/Win)
• 120-voice polyphony
• Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
• 3 Selectable Keyboard Touch Curves (Heavy, Medium, Light)
• Piano Timbre controls with custom settings for Electric Pianos and Clavinet
• String Resonance for acoustic Grand Pianos and Uprights
• Selectable Soft Piano Release
• Pedal Noise when used with Nord Triple Pedal 1, Nord Triple Pedal 2 or Nord Sustain Pedal 2 on selected acoustic and electric pianos
• Dynamic Compression
• Unison functionality
• 2 Layers (2-Part Multitimbral)

Synth Section

• Nord Wave 2 Synth Engine with Sample Playback
• Dedicated OLED Display for Waveform/Sample selection and parameter editing
• 1GB Memory for Nord Sample Library
• All samples can be replaced using Nord Sound Manager (Mac/Win)
• 46-voice polyphony
• Oscillator Types: Analog (including Super, Noise and Misc waveforms), Digital Waves, FM and Sample
• Analog Waveform options: Pure, Shape, Shape Sine, Multi, Super, Sync, Bell, Misc (Noise)
• Classic Transistor Ladder Filter (LP M), 12dB & 24dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
• Filter Drive: Off, 1, 2 and 3
• Filter Tracking: Off, 1/3, 2/3 and Full
• 3 Unison modes
• Vibrato modes controllable from Mod Wheel, Aftertouch and pedal.
• Filter envelope (Attack, Decay/Sustain, Release) with Velocity control
• Amplitude envelope (Attack, Decay/Sustain, Release) with Velocity control
• Oscillator envelope (Attack, Decay/Sustain, Release) with Velocity control
• LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
• Advanced Arpeggiator with Arp, Polyphonic and Gate modes
• Arpeggiator Patterns for all modes, with Accent and Pan options
• LFO and Arpeggiator synchronizable to Master Clock
• 3 Layers (3-Part Multitimbral)

Effects

• Mod 1: Tremolo, Auto Pan, Ring Modulator, Wah-Wah, Auto-Wah, Pump (Sidechain modulation), variation for each effect
• Mod 2: Phaser, Flanger, Vibe, Chorus, Ensemble, Spin, variation for each effect
• Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP), Feedback Effects with Variations and panel selectable Analog mode
• 3 types of Amp/Speaker simulations, Twin, JC and Small. Variation for each model
• Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
• Tube amp simulation with adjustable overdrive
• 3-band Equalizer with sweepable mid. EQ ranges: 100Hz, 200Hz¬–8kHz and 4kHz
• Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
• Effect rates/tempo can be synchronized to the Master Clock
• Compressor with Fast Mode
• Reverb: 6 algorithms (Spring, Booth, Room, Stage, Hall and Cathedral) with Dark/Bright modes and Variation/Chorale options

Keyboard

• Nord Stage 4 73: 73-key Triple Sensor Hammer Action keyboard with Aftertouch. Range: E-E

Connections

• 4 Assignable Audio Outputs – 1/4″, 6.35 mm jacks, unbalanced
• Stereo Headphone output – 1/4″, 6.35 mm stereo jack
• 1 Monitor input – 1/8″, 3,5 mm stereo jack
• Sustain Pedal – 1/4″, 6.35 mm jack, compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
• Triple Pedal – 5 pin DIN connector, compatible with Nord Triple Pedal 2
• Rotor Pedal – 1/4″, 6.35 mm jack; use a momentary pedal or a switch type pedal
• Organ Swell Pedal – 1/4″, 6.35 mm TRS stereo jack
• Control Pedal – 1/4″, 6.35 mm TRS stereo jack
• Footswitch input – 1/4″, 6.35 mm jack; use a momentary two-button pedal or a single switch type pedal
• MIDI In – 5-pin DIN connectors
• MIDI Out – 5-pin DIN connectors
• USB – type B connector for USB MIDI, Software Update and Sound Transfer
• Power Cord with IEC C14 connector

Included Accessories

• User Manual
• Power cord
• USB cord
