RF Venue CP Beam COMBINE8 Package Black

Original price was: $2,799.00.Current price is: $126.99.

SKU: SKU1500000415824 Categories: Mics & Wireless, Wireless Systems Tag: RF Venue Brand: RF Venue

Description
Reviews (0)

This RF Venue CP Beam COMBINE8 Package includes one COMBINE8 IEM transmitter antenna combiner, one CP Beam antenna and one RG8X25 25′ low-loss coaxial cable. This is a complete system, engineered to work together to combine up to eight IEM transmitters of any brand into a single helical antenna. It starts with the COMBINE8 transmitter combiner, which can also provide DC power for up to eight of your IEM transmitters. This package also features an RG8X coax cable to run to the included CP Beam antenna, a lightweight and portable folding antenna with 9dBd of gain. The CP Beam helical antenna steps up an IEM system’s transmitting power by nearly eight times, focusing the signal directly on your performers and not scattering the signal where it isn’t needed. This allows you to use the lowest possible setting of your transmitter’s output power, which greatly reduces intermodulation interference to both your wireless mics and your IEMs. This is an extra benefit that improves RF signal and audio quality.

Simply connect your IEM transmitters to the COMBINE8, and you’re ready to maximize your monitoring system efficiency while also reducing or eliminating intermodulation issues. If you work with multichannel in-ear monitoring systems from any brand, you’ll benefit from the RF Venue CP Beam COMBINE8 Package.

Combine up to eight in-ear monitor transmitters to a single antenna
Provides DC power for up to eight IEM transmitters
Minimizes intermodulation between multiple adjacent transmitters
Works with any brand of IEM system
High-gain folding antenna offers 9dBd of gain for long-range applications
Includes 25′ RG8X coaxial cable
RF interconnects to eight IEM transmitters are included

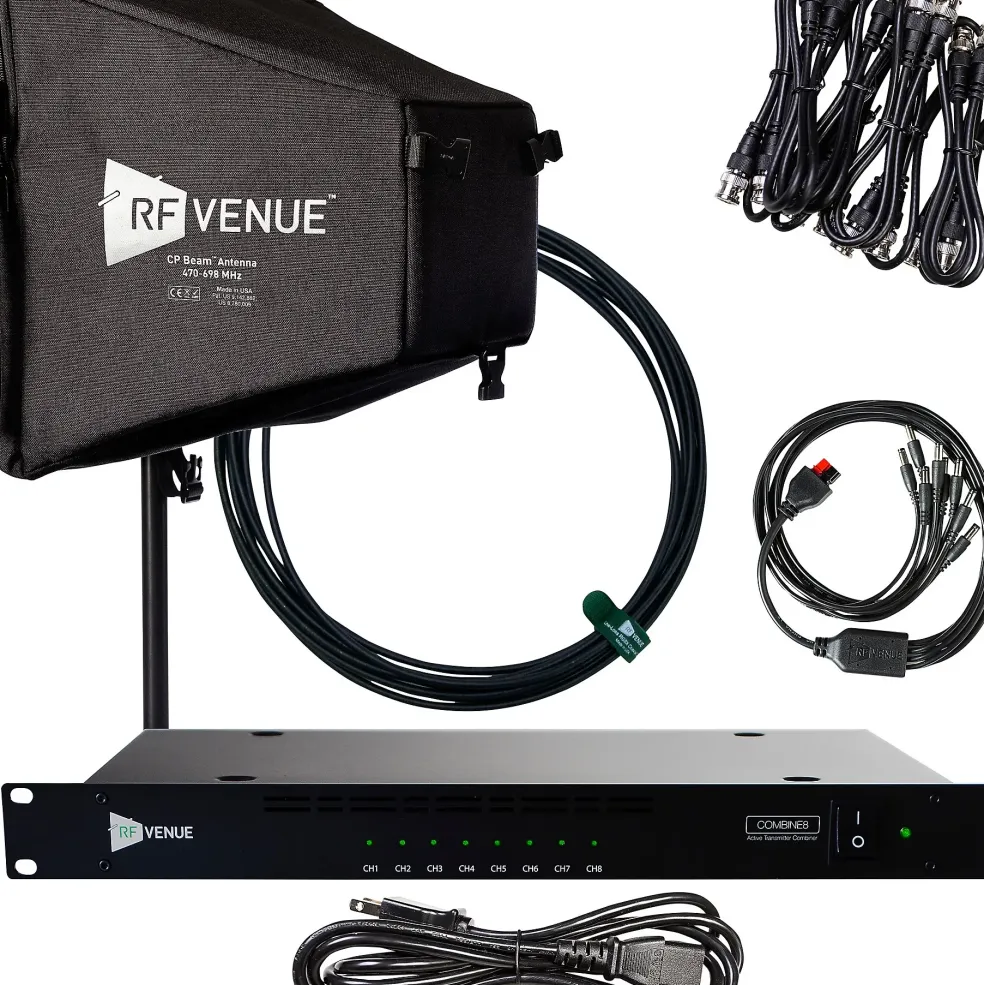

Included accessories:
One CP beam antenna with stand mount and N-BNC connector
One COMBINE8 antenna combiner
One RG8X25 coaxial cable
Eight RG8X BNC jumpers
One AC power cable
One DC Octopus 8-connector power distribution cable

COMBINE8 IEM Transmitter Antenna Combiner

Broadband UHF operation (470–608mHz range)
Combines the signals of up to eight wireless in-ear monitor transmitters into one antenna
External power supply provides DC power to up to eight individual transmitters
Eight BNC inputs for IEM transmitter signals
Front-panel LED signal indicators for each input
Includes two AC cables, auxiliary power supply with eight DC plugs and eight BNC jumpers
Full rack width (One RU)

CP Beam Antenna

Lightweight, circularly polarized beam antenna (470-698 MHz)
Unique folding design allows antenna to be collapsed for storage and transport
Can be used with IEMs, wireless microphone systems and other UHF communication devices
63×70-degree beam angle
Provides up to 9dB of antenna gain

RG8X25 25′ Coaxial Cable

Premium low-loss RG8X coaxial cable with BNC (male) connectors
Double-shielded (braid over foil) design
25′
