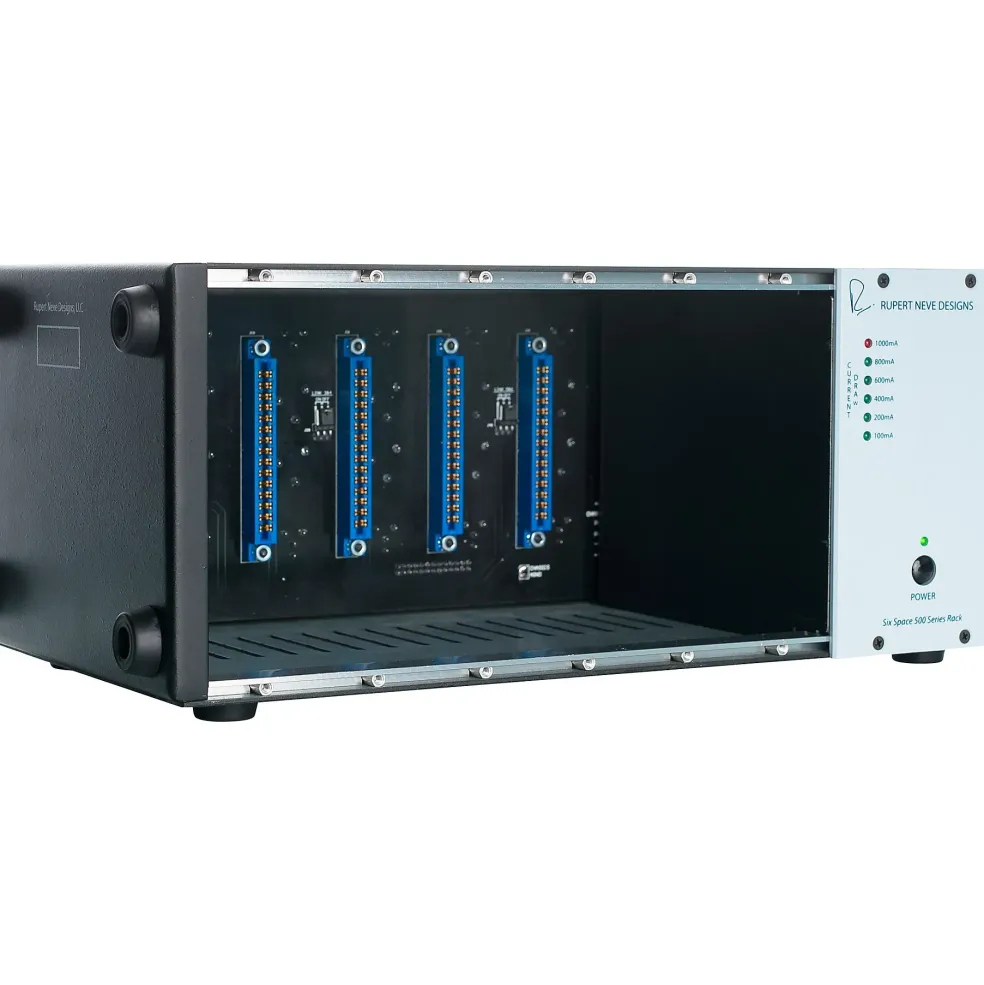

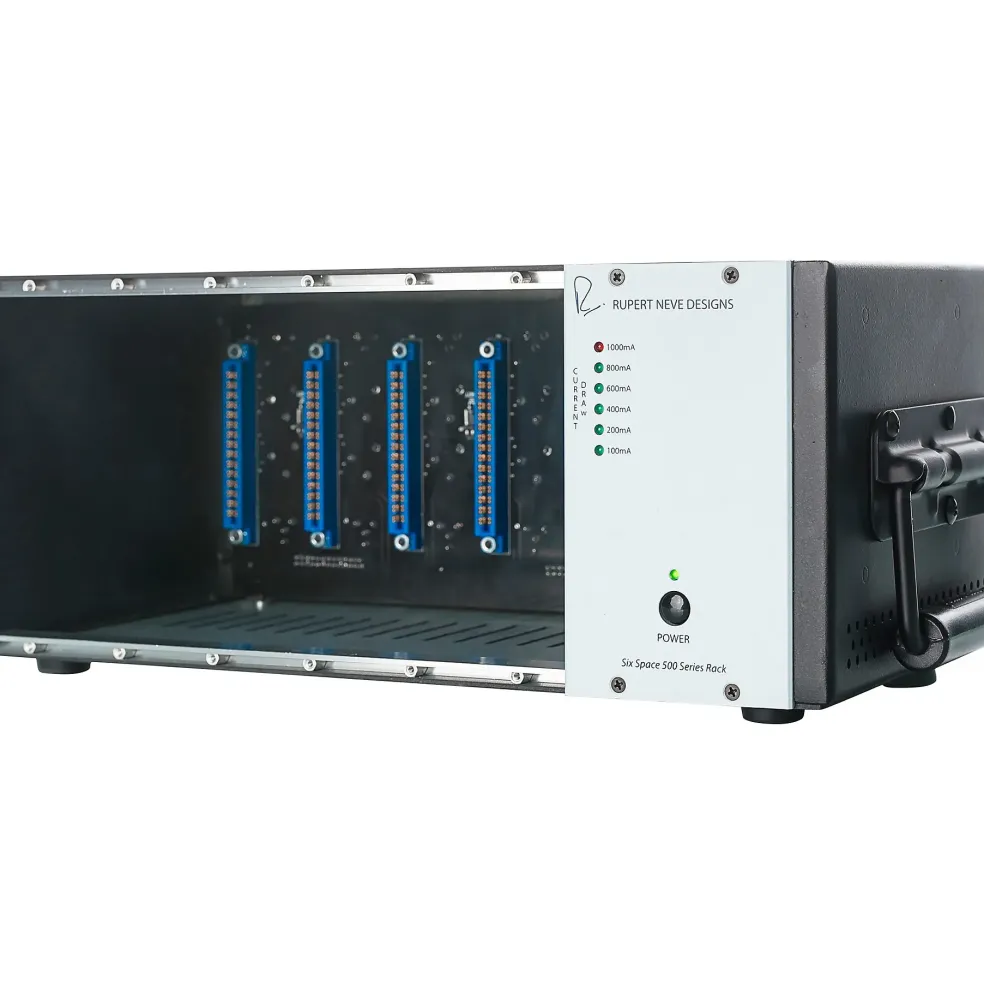

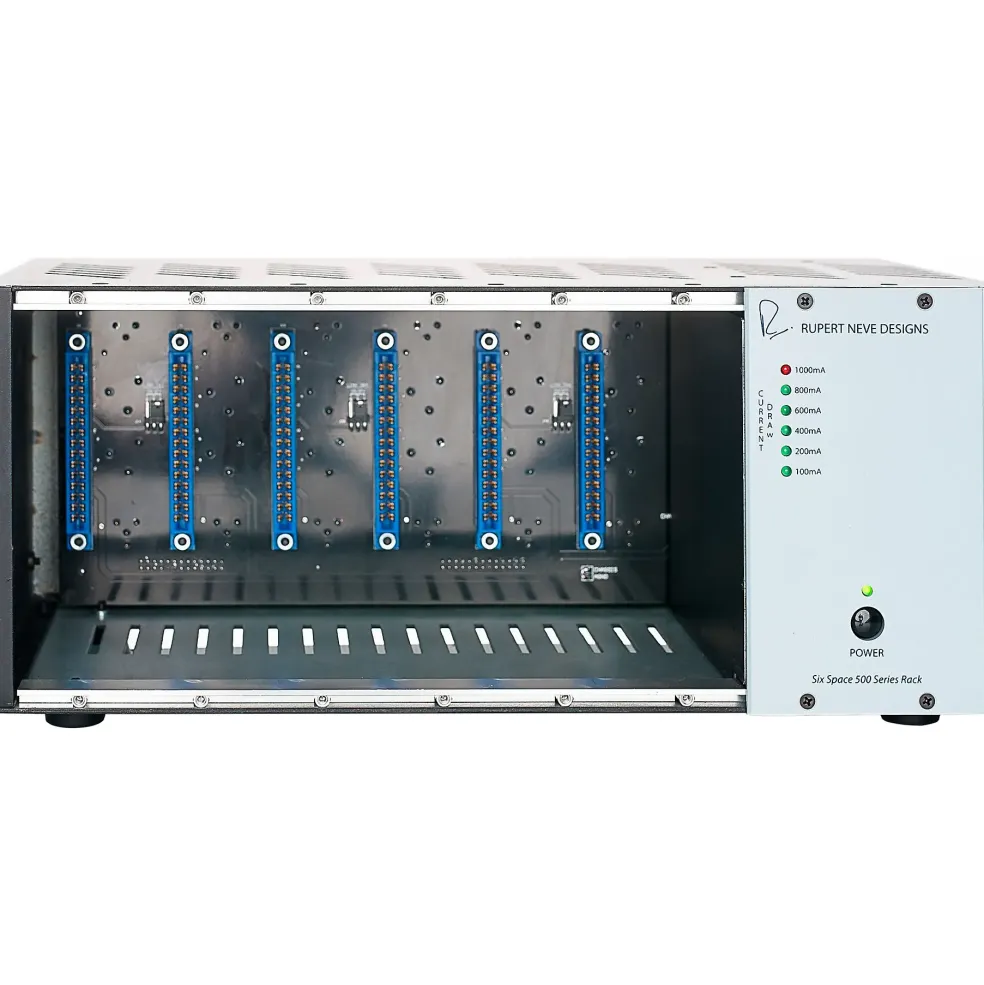

Rupert Neve Designs 6SP 500 Series Rack

Power-wise, the R6 has more than 150% the required current for a 6-space chassis to prevent the power rails from failing under a higher-than-expected load. To help monitor and troubleshoot problematic modules, the R6 is equipped with LED current metering to show how much power is being used. The internal power supply itself has been carefully designed and double-shielded to avoid significant magnetic induction in any of the channel positions. With such attention to providing and monitoring power, the R6 helps your modules realize their fullest potential.

Connect Like Never Before

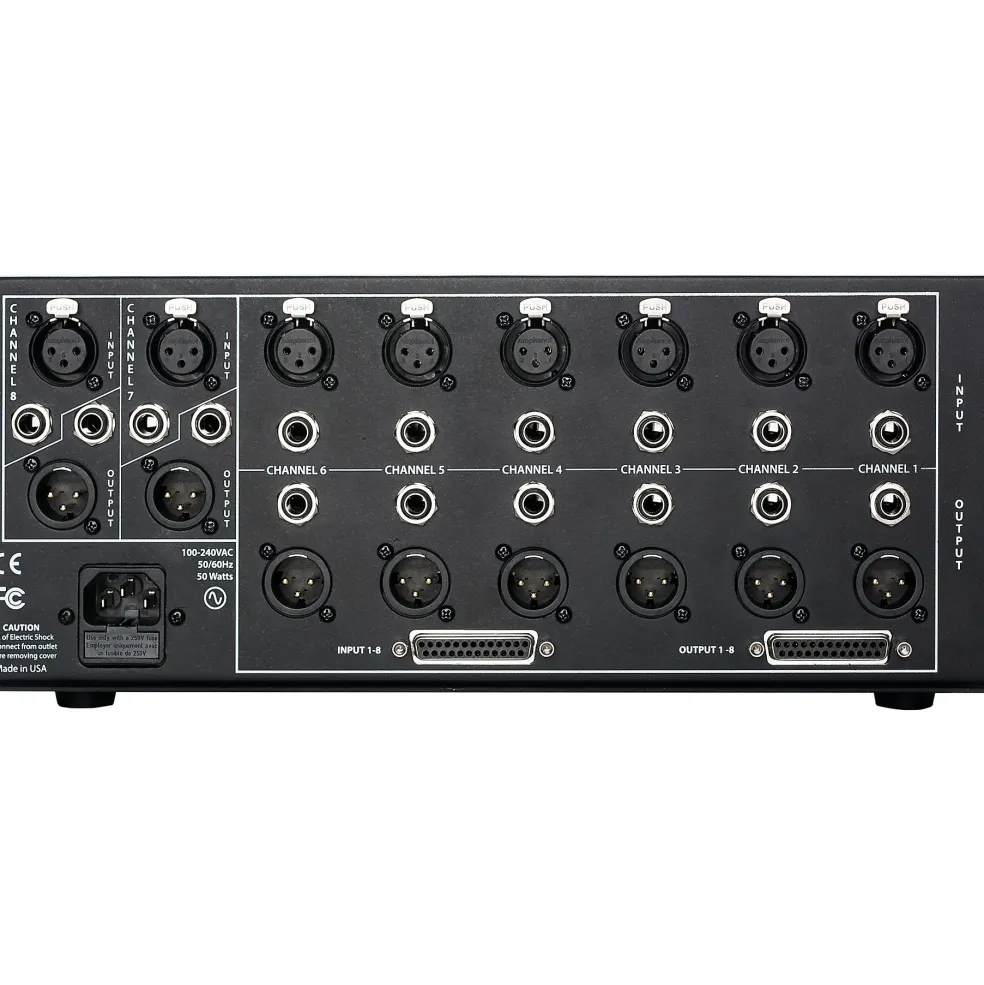

With a plethora of connections available, the R6 backpanel is practically a patchbay on its own. The R6 features 8 channels of balanced I/O options including DB-25, XLR and TRS that may be used interchangeably. This versatility is especially handy when you are taking the R6 with you to another environment where you are unsure of the cables available, or if you need to convert DB-25, XLR or TRS connections to another format using the THRU functionality on channels 7-8.

Solid Steel Construction
The chassis is comprised of solid steel with bumpers to support the unit in both horizontal and vertical configurations, and features a collapsable handle for portability. All connectors and fittings are of the highest quality to ensure that the R6 will hold up to many years of use.

A New Level of Confidence in the 500 Series
Because the R6 is built to 500 series specifications, it will work flawlessly with any properly-designed 500 series module you wish to include in it. To help accommodate modules that are slightly out of spec, the R6 has variable-position screw holes to help make the installation process as smooth as possible. The 500 series VCA buss link function can be enabled in pairs on the R6 using the link jumpers on Channels 1-2, 3-4, or 5-6. Enabling link allows compatible compressor modules like the 543 to share VCA control when their links are enabled. Matching blank panels are also available to cover any empty slots.
