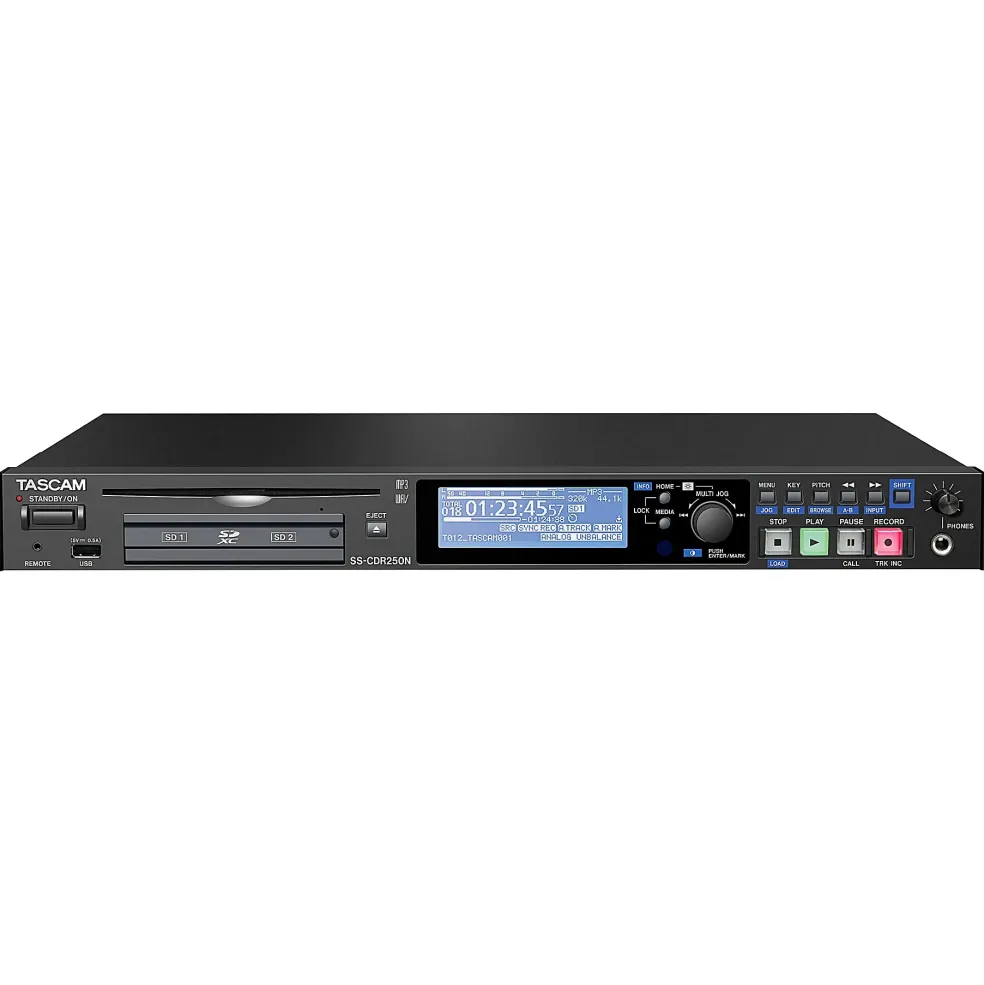

The SS-CDR250N is the ideal SD card recorder/player with CD recorder, having a variety of features with extensive terminal equipment applications and business applications. An FTP client function is added, which enables the exchanges of sound source data with others via server communication. You can also keep the starting time accurate for recording and playback based on time management via SNTP.
The SS-CDR250N is equipped with a LAN terminal, so you can have a network connection. When using as an FTP client, you can upload recorded files from the SS-CDR250N side or download sound files from the server. Since the unit also acts as an FTP server, you can also upload/download from the PC side. Without having to physically exchange SD cards, this is a safer and more convenient file management system.
Event List for Rec, Play, Download
The SS-CDR250N’s Event List function has an auto-play feature for audio files such as background music and announcements—useful in retail stores and restaurants. Utilize the event lists for scheduled recording, playback, downloading and other events. By combining playback events with download events, audio files can be automatically retrieved from a server for playback. The function also enables centralized file management from corporate headquarters to multiple locations—perfect for playing files simultaneously in chain stores.
Time Setting via SNTP Client
Make an event list plays based on the time you set. The SNTP Client function enables you to obtain time information regularly from the server in order to keep time accurate.
Automatic Upload enables recorded files to be uploaded automatically
After recording, the recorded data can be automatically uploaded to the specified server. You can archive recorded data without extra time-consuming work. Meetings or lectures on regular basis can be recorded and uploaded automatically for file archive. Since the file uploading takes place in the background, it does not disturb your recording/playback work.
A dedicated TASCAM SS250 CONTROL app is available for free download. This app is for iOS/Android, and is available at the App Store and on Google Play. For Windows/Mac, the app can be downloaded directly from the TASCAM website.
- Frequency Response: 20Hz–20kHz ±0.5dB
- Signal to Noise Ratio: 95dB or more
- Dynamic Range: 95dB
- Distortion: 0.005% or less
- Channel Crosstalk: 95dB
- Supported Media: SD (512MB to 2GB)
- SDHC (4GB to 32GB)
- SDXC (up to 128GB) card
- USB memory (512MB to 64GB)
- CD-R, CD-R-DA, CD-RW, CD-RW-DA
- Recording Formats: WAV: Stereo/Mono, 44.1/48/96kHz, 16/24-bit
- MP3: Stereo/Mono, 44.1/48kHz, 64 to 320 kbps
- CD-DA: Stereo, 44.1kHz
- Playback Formats: WAV: Stereo/Mono, 44.1/48/96kHz, 16/24-bit
- MP3: Stereo/Mono, 44.1/48kHz, 64 to 320 kbps
- CD-DA: Stereo, 44.1kHz
- Number of Channels: 2 mono, 1 stereo
Analog Inputs
- Connector: 3-pin XLR (1: GND, 2: HOT, 3: COLD)
- Standard Input Level: +4dBu (1.23 Vrms)
- Maximum Input Level: +20dBu (7.75 Vrms)
- Minimum Input Level: -10dBu (0.25 Vrms) or more
- Input Impedance: 22 kohms
- Connector: Unbalanced:
- RCA pin jacks
- Standard Input Level: -10 dBV (0.316 Vrms)
- Maximum Input Level: +6 dBV (2.0 Vrms)
- Minimum Input Level: -24 dBV (0.06 Vrms) or more
- Input Impedance: 22 kohms
Analog Outputs
- Connector: Balanced
- 3-pin XLR (1: GND, 2: HOT, 3: COLD)
- Standard Output Level: +4dBu (1.23 Vrms)
- Maximum Output Level: +20dBu (7.75 Vrms)
- Output Impedance: 100 ohms
- Connector: Unbalanced
- RCA pin jacks
- Standard Output Level: -10dBV (0.316 Vrms)
- Maximum Output Level: +6dBV (2.0 Vrms)
- Output Impedance: 200 ohms
Headphones
- Connector: 1/4″ (6.3 mm) stereo jack
- Maximum Output: 45 mW + 45 mW (into 32 ohms load, 0.1% distortion)
Digital Inputs
- Connector: 3-pin XLR and RCA jacks
- Formats: IEC60958-3 (S/PDIF), AES3-2003/IEC60958-4 (AES/EBU)
- Input Frequency: 32Hz to 96kHz
Digital Outputs
- Connectors: 3-pin XLR and RCA jacks
- Formats: IEC60958-3 (S/PDIF), AES3-2003/IEC60958-4 (AES/EBU)
